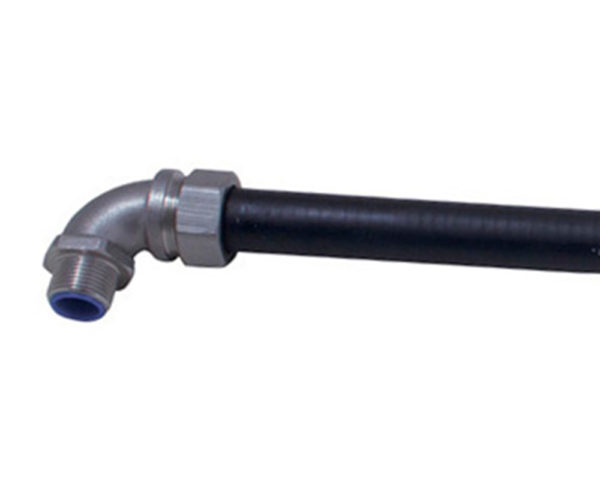

Cabflx CETX32 Extreme Temp Lt Conduit 32Mm Bk 25M

High-temperature spiral wound conduit made from hot-dipped galvanized steel with
corrosion-resistant core
UV stabilized black TPV jacket, halogen-free UL94-H, superior resistance to chemicals
Compression resistant to HD rating of 1250 Newtons
Operating temperature -60 to +150 degrees Celsius
IP66 with CABFLX fittings
Heavy Duty Steel Conduit with Extreme Temperature Resistance
The CABFLX CETX range of heavy-duty steel conduit provides excellent cable protection and
offers enhanced resistance to extreme temperatures. Like our other high-quality flexible metallic
conduits, the CETX range is designed to provide an advanced level of mechanical and
environmental protection for installations where flexibility is essential.
Our CETX conduit is free from halogens and suitable for applications where exposure to
extremes in temperature may be a concern. A spiral wound, interlocked galvanized steel core ensures superior strength whilst maintaining good flexibility. The addition of high performance,
UV stabilized thermoplastic vulcanizate (TPV) jacket creates a liquid-tight conduit with superior
resistance to high temperatures. This combination of excellent mechanical strength, greater
temperature resistance, and UV protection makes CABFLX CETX conduit suitable for many
indoor or outdoor cable installation projects.
Technical Data
Material: galvanized steel core, TPV jacket
Temperature rating: -60 to +150 degrees Celsius
Nominal size: 32mm
Trade size: 1 inch
ID: 26.7mm
OD: 33.1mm
Min. Bend Radius: 100mm
Length: 25m
