CABFLX CF020-B-50, LOW FIRE NYLON CONDUIT 20MM 50M
Skip to content

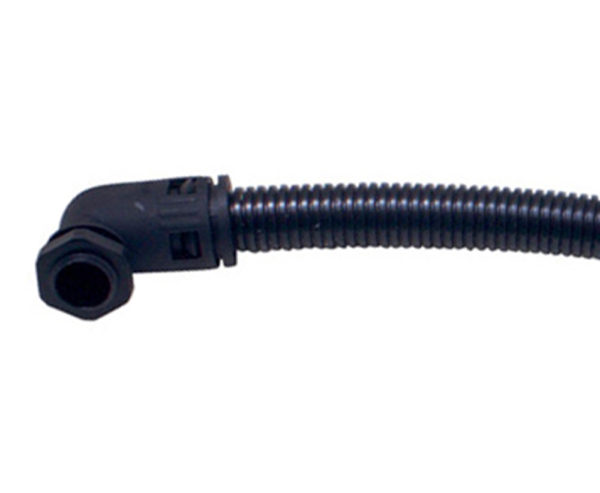

Cabflx CF020-B-50 Low Fire Nylon Conduit 20Mm 50M

Cabflx CF020-B-50 Low Fire Nylon Conduit 20Mm 50M-0

Cabflx CF020-B-50 Low Fire Nylon Conduit 20Mm 50M

SKU: CF020-B-50

$327.00 Incl. GST

In stock

Let me know if the price goes down
Send
Add to Wishlist

Low Fire Nylon Conduit 20MM 50M

SKU: CF020-B-50 Category: Tags: , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

Non-metallic liquid tight conduit made from halogen-free PA6 nylon, low fire hazard UL94
V-2
Halogen, phosphor, and cadmium free, UV resistant
Temperature rating -40 to +115 degrees Celsius, flame retardant
Self-extinguishing, IP66 RoHS compliant and anti-static
Low Fire Hazard Flexible Nylon Conduit UL94 V2
CABFLX Low Fire Hazard Nylon Conduit offers excellent flexibility and mechanical strength for
the insulation and protection of electrical cables. Made from UV resistant PA6 nylon, the CF
range is free from halogen, phosphor, and cadmium and resistant to chemicals such as oils, acid
and solvents.
Our CF conduit is rated to the V2 flammability rating as defined in UL94, a standard that
provides a method for rating the flammability of plastic materials. To comply with the V2 rating,
burning must stop within 30 seconds on a vertical specimen; drips of particles are allowed.
Our nylon conduit systems are suitable for a variety of industry applications, including machine
tools, industrial equipment, automotive, air-conditioning equipment, railway rolling stock and
other general wiring requirements.
Technical Data
Material: Polyamide 6 (PA6) Nylon
Temperature rating: -40 to 115 degrees Celsius (Intermittent to 150 deg C)
Nominal Size: 20mm
ID: 16.5mm
OD: 21.2mm
Minimum Bend Radius: 35mm
Length: 50m
