APC Battery Back UPS CS 500VA/230V 4 LEC Outlets

APC Battery Back UPS CS 500VA/230V 4 LEC Outlets-0
APC Battery Back UPS CS 500VA/230V 4 LEC Outlets-11125

APC Battery Back UPS CS 500VA/230V 4 LEC Outlets

SKU: UPAPCBK500EI

$209.00 Incl. GST

In stock

Let me know if the price goes down
Send
Add to Wishlist

APC Battery Back UPS CS 500VA/230V 4 LEC Outlets

SKU: UPAPCBK500EI Categories: , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

APC Battery Back UPS CS 500VA/230V 4 LEC Outlets

DESCRIPTION

Output
• Output power capacity:300 Watts / 500 VA
• Max Configurable Power (Watts):300 Watts / 500 VA
• Nominal Output Voltage:230V
• Output Frequency (sync to mains):47 – 63 Hz
• Output Frequency (not synced):50/60 Hz +/-1 Hz
• Topology:Standby
• Waveform type:Stepped approximation to a sinewave

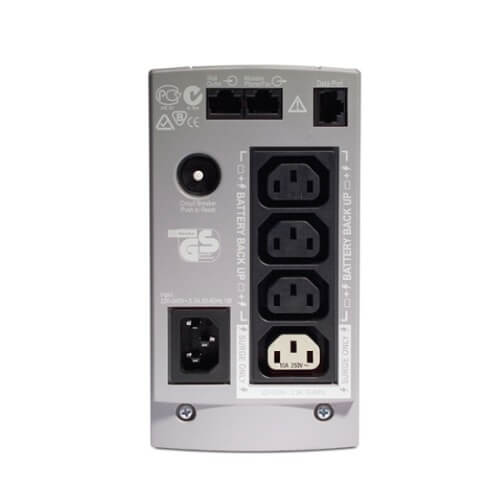

• Output Connections:
â—¦ (1) IEC 320 C13 (selector_surgetitle)
â—¦ (3) IEC 320 C13 (Battery Backup)

• Transfer Time:6ms typical: 10ms maximum

Input
• Nominal Input Voltage:230V
• Input frequency:50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: IEC-320-C14 inlet Cord Length 1.83 meters
• Input voltage range for main operations:180 – 266 V
• Input voltage adjustable range for mains operation:160 – 300 V
• Number of Power Cords: 2
• Maximum Input Current:7.0 A

Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
• Typical recharge time:8 hour(s)
• Replacement Battery: RBC2
• RBC Quantity:1
• Battery Volt-Amp-Hour Capacity:83
• Runtime: View Runtime Graph View Runtime Chart
• Efficiency: View Efficiency Graph

Communications & Management
• Interface Port(s): Optional Simple Signalling RS232 cable, USB
• Control panel:LED status display with On Line: On Battery: Replace Battery and Overload indicators
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm

Surge Protection and Filtering
• Surge energy rating:310 Joules
• Data Line Protection: Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
• Filtering:Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: meets UL 1449

Weight 6.32 kg
