Introduction
This product will let the user experience of transmitting the HD content by wireless. The HDMI sources over wireless kit extends high-definition video and audio to any HDTV displays up to 100 meters away.
The extender follows the TCP / IP standard Wireless Transport Protocol, so it has high transmission rate and strong anti-interference capability. It also supports HDMI mirror output and infrared remote control extension. The HDMI Wireless Extender is widely applicable to office presentation, lecture, education, conference, family entertainments etc.
Features

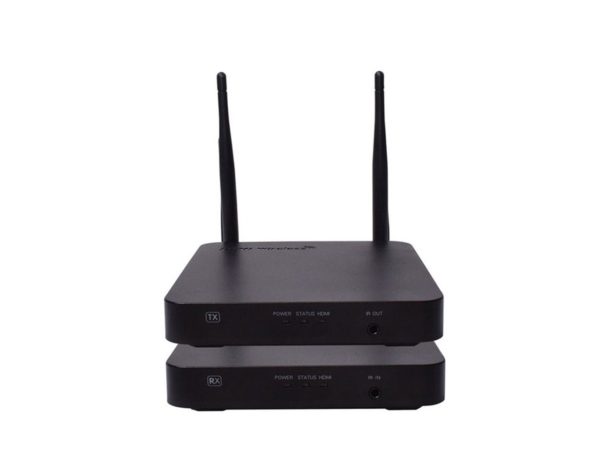

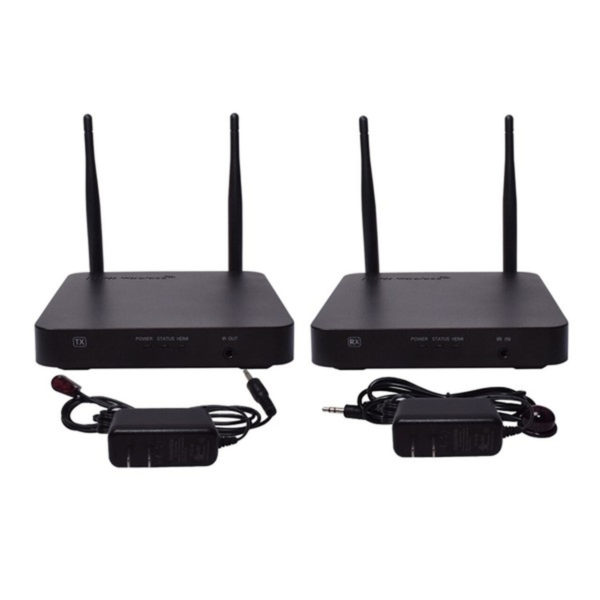

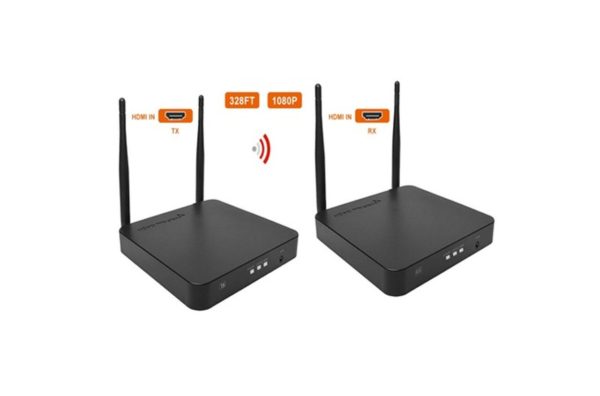

- Contains a transmitter (TX) and a receiver (RX). The HDMI signal over wireless transmission from the transmitter to the receiver
- The TX support one HDMI loop output, for local screen monitor
- Support HDMI resolution: 480i/576i~1080P@50/60Hz and SVGA~WUXGA
- Digital 2.4G & 5GHz dual frequency wireless A/V transmission, high transmission rate and strong anti-interference capability
- Using an external dual – gain antennas. Full HD 1080p transmits up to 100 meters wirelessly in open space.( May be affected by the use environment)
- Extends infrared remote to control source device from display side
- Support OSD, for informed of device status
- Simple Plug and Play. Full hardware design, no software installation required
- Support Web Configuration Interface, Simple and easy to use
SPECIFICATIONS
HDMI Compliance…………………………………..………………………………….. HDCP1.4
HDMI resolution ……………up to 1080P@50/60Hz&SVGA/XGA/WXGA/SXGA/WXGA+/UXGA/ WSXGA+/ WUXGA
HDMI Audio Format……………………………………………………………………………….. LPCM2.0
HDMI Max bandwidth………………………………………………………….………………………225MHz
HDMI Max baud rate…………………….………………….………………….……………………6.75Gbps
Input/Output TMDS signal ………….……………………………….……………….0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……………………. 5Volts p-p (TTL)
HDMI output cable distance…………………………………………≤12m AWG26 HDMI standard cable
Antenna type…………………………………………………………..…. External dual 3dBi gain antenna
Wirelessstandard…………………………………………………………………………IEEE 802.11a/b/g/n
Wireless Band…………………………………………………………………….. 2.4GHz, 5GHz ISM Band
Max Data rates………………………………………………………………………… 2T2R up to 300Mbps
Transmit Output Power（IPEX）…………………………………………………….……….……16±2dBm
Transmission distance………………………………………………………….up to 100m (in open space)
IR Carrier frequency…………………………………………………………………………………….38KHz
TX/RX Max working current ……………………………………………………….……….…….………. 1A
Power adapter format Input …………….….…….…….…….…. AC 100V～240V 50HZ/60Hz, DC5V/2A
Operating Temperature range ……..…………….……………………………………………. -5 to +45℃
Storage Temperature range……………………………………………………………………. -20 to +60℃
Operating Humidity range ………………………….….……….……….10 to 90%RH (No Condensation)
Storage Humidity range………………………….….……….……………5 to 95%RH (No Condensation)
Case Dimension (L x W x H) ………………………………….…………………….127.5×127.5×25 (mm)
Weight …….…………………………….………………………………………….………..TX175g/RX170g
