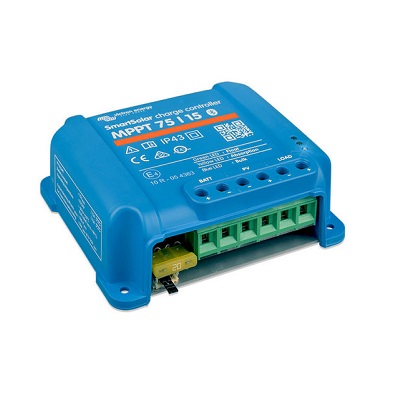

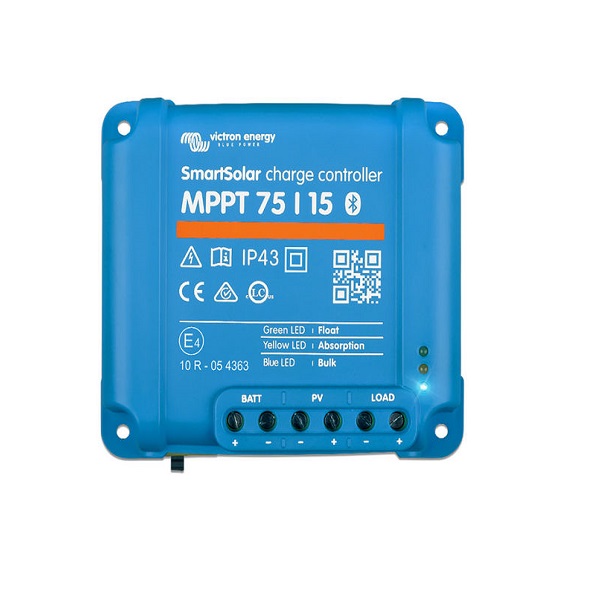

Victron Smart Solar MPPT 75/15 Bluetooth Solar Controller
FOR 12V / 24V BATTERY SYSTEMS
A solar charger gathers energy from your solar panels and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy harvest, driving it intelligently to achieve full charge in the shortest possible time. Supports built-in Bluetooth. It allows you to set up, monitor, and update the controller using a smartphone app. It utilises intelligent battery management to improve battery health, extending battery life. Solar input up to 75V max. open circuit. 15A charge. Supports 12V/24V battery voltage. Dimensions: 100x113x40mm. IP43 rated.
Victron SmartSolar 75V max Open Circuit Voltage, 15A MPPT solar panel charge controller with Bluetooth is suitable for 12V and 24V battery systems. This MPPT controller operates solar panels at their Maximum Power Point to improve efficiency by up to 30% by adjusting input voltage to harvest the maximum power from the solar panels. It senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, the inbuilt intelligent battery management feature in the SmartSolar can be set. Known as Battery Life, the feature is designed to protect and better maintain your battery by ensuring 100% recharge is regularly reached. SmartSolar attempts a daily 100% recharge. During periods of poor weather or low light conditions, it raises the disconnect voltage until successful. The controller includes built-in Bluetooth along with the VictronConnect App allows easy access to the extensive range of functions available on your solar charge controller.
Remotely control and monitor the extensive features of your BlueSolar MPPT charger with built-in Bluetooth along with the VictronConnect App allows easy access to the extensive range of functions available on your solar charge controller.
- Ultra Fast Maximum Power Point Tracking
- Remote Monitoring and Control via Bluetooth
- Intelligent load output function to prevent damage caused by running the battery flat
