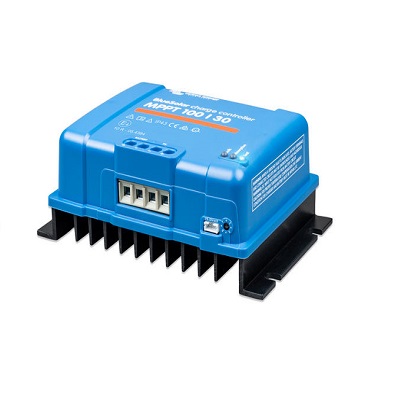

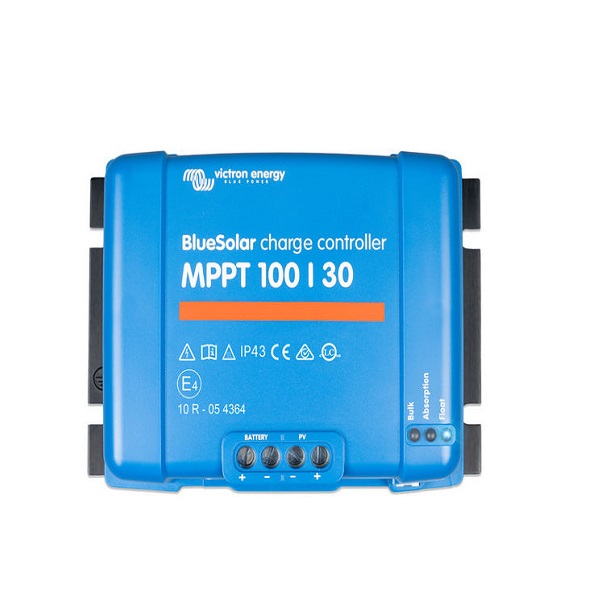

Victron Bluesolar MPPT 100V 30A Solar Controller Non-Bluetooth

Victron Bluesolar MPPT 100V 30A Solar Controller Non-Bluetooth

SKU: MPPT100/30

$207.00 Incl. GST

Let me know if the price goes down
Send
Add to Wishlist

Victron Bluesolar MPPT 100V 30A Solar Controller Non-Bluetooth For 12V / 24V Battery Systems 130x186x70mm

SKU: MPPT100/30 Category: Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

Victron Bluesolar MPPT 100V 30A Solar Controller Non-Bluetooth

FOR 12V / 24V BATTERY SYSTEMS

The BlueSolar MPPT 100/30 is a non-Bluetooth solar charge controller that is designed to maximise the power output of your solar panels and store it in your 12/24V batteries. It features an ultra fast MPPT controller, allowing 30% more energy harvest than PWM controllers and 10% more than slower MPPT controllers.

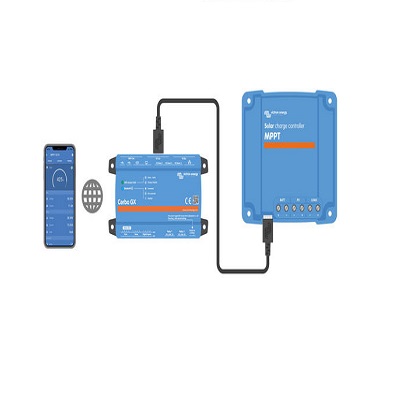

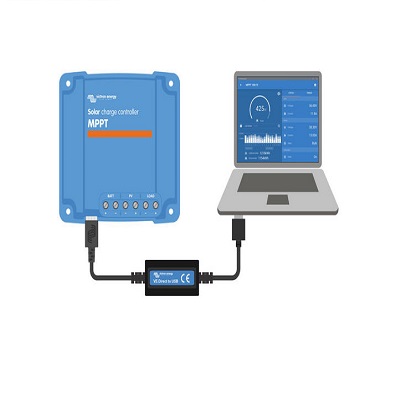

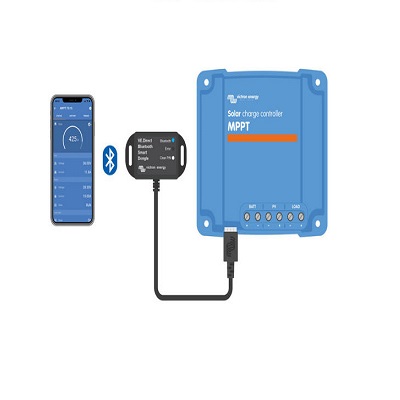

The solar charger features Battery Life, an intelligent battery management function that adjusts load disconnect levels to prevent battery damage. It offers various charge protections and can be monitored and managed using the VictronConnect app via Bluetooth (with optional VE.Direct Bluetooth Smart Dongle), USB (with optional VE.Direct to USB interface cable, or the internet using a GX device or GlobalLink 520 device.

  • 12V/24V auto-select battery voltage.
  • 100V max. PV open circuit voltage, 30A rated charge current.
  • 440W @12V or 880W @24V maximum PV power.
  • An ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers when light intensity is changing continuously.
  • The innovative BlueSolar algorithm will always maximise energy harvest by locking in the optimum MPP.
  • No cooling fan. Maximum efficiency exceeds 98%.
  • Fully programmable charge algorithm and eight pre-programmed algorithms, selectable with a rotary switch.
  • Reverse polarity (fuse) protection, output short circuit protection, and over-temperature protection.
  • Real-time data display options (requires VE.Direct Bluetooth Smart dongle and smartphone app).
  • Dimensions: 130x186x70mm. IP43 ingress protection rated.
Manufacturer

Victron Energy
Size

130x186x70mm
Charge Current Max.

30A
V in

100V OC
V out

12V/24V
PV

100V OC

Reviews

There are no reviews yet.

Be the first to review “Victron Bluesolar MPPT 100V 30A Solar Controller Non-Bluetooth”
Victron Bluesolar MPPT 100V 30A Solar Controller Non-Bluetooth_Brochure
