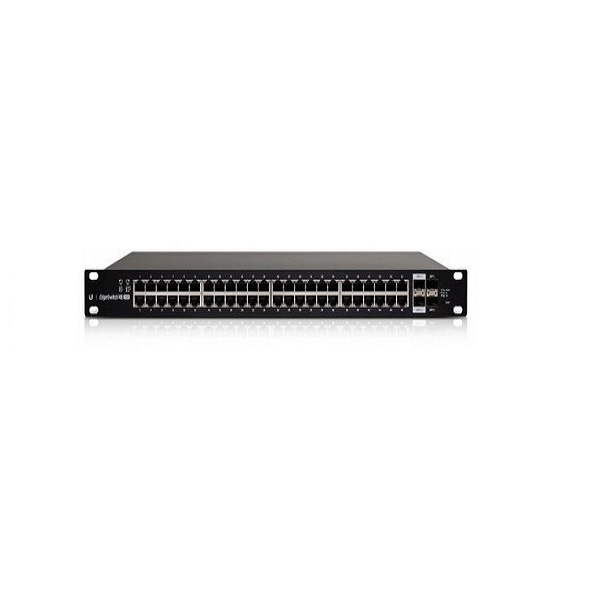

Ubiquiti EdgeSwitch Managed Gigabit Switch 48 Port With 2x SFP And 2x SFP+ Ports

The EdgeSwitch™ Lite simultaneously processes traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 70 Gbps for the 48-port model.

Advanced Switching
Technology for the Masses Build and expand your network with Ubiquiti Networks® EdgeSwitch™ Lite, part of the EdgeMAX® line of products. The EdgeSwitch Lite is a fully managed, Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The EdgeSwitch Lite offers an extensive suite of advanced Layer 2 switching features and protocols, and also provides Layer 3 routing capability.
Switching Performance
The EdgeSwitch Lite offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, the 24‑port models support up to 26 Gbps, while the 48-port models support up to 70 Gbps.
Fiber Connectivity
The EdgeSwitch Lite provides fiber connectivity options for your growing networks. The 24-port models include two SFP ports, providing up to 1 Gbps uplinks.
For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Lite Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry‑standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Powerful Functionality
The EdgeSwitch Lite uses a sophisticated operating system that provides basic switching features, and a variety of advanced features
including:
MSTP/RSTP/STP
VLAN, Private VLAN, Voice VLAN
Link Aggregation
DHCP Snooping, IGMP Snooping
TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
DiffServ, CoS
Static Routing, Policy-Based Routing

• (48) Gigabit RJ45 Ports
• (2) SFP+ Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 70 Gbps
• Switching Capacity: 140 Gbps
• Forwarding Rate: 104.16 Mpps
• Maximum Power Consumption: 56W
• Rack- or Wall-Mountable
• DC Input Option (Redundant or Stand-Alone)

Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
Weight 2.51 kg (5.53 lb)
Total Non-Blocking Throughput 26 Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Max. AC Power Consumption 25W
Power Method
AC 100-240VAC/50-60 Hz, Universal Input
DC 25W, 25 to 16V, with 2.5 mm DC Power Inline Connector
Power Supply AC/DC, Internal, 25W DC
LEDs Per Port
Serial Console Port No
RJ45 Data Ports Speed/Link/Activity
SFP Data Ports Speed/Link/Activity
Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
