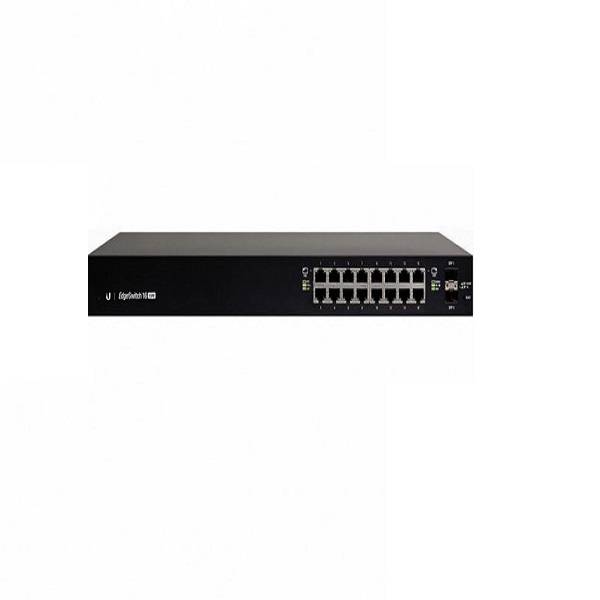

Ubiquiti EdgeSwitch 16 Port Managed PoE+ Gigabit Switch 150w

Advanced Switching Technology for the Masses
Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products.
The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The EdgeSwitch provides total, non‑blocking throughput:
8-Port Model Up to 10 Gbps
16-Port Model Up to 18 Gbps
24‑Port Models Up to 26 Gbps
48-Port Models Up to 70 Gbps
PoE+ Flexibility
The EdgeSwitch models are available with 8, 16, 24, or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure.
By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. The 8, 16, and 24-port models include two SFP ports, providing up to 1 Gbps uplinks.
For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing uplinks of up to 10 Gbps.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.
For advanced users, an industry‑standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.
Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:
MSTP/RSTP/STP
VLAN, Private VLAN, Voice VLAN
Link Aggregation
DHCP Snooping, IGMP Snooping
TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
DiffServ, CoS
Static Routing, Policy-Based Routing
DHCP Server Functionality

• (16) Gigabit RJ45 Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 18 Gbps
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps
• Maximum Power Consumption: 150W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable with Rack-Mount Brackets (Included)

Dimensions 443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
Weight Without Mount Brackets With Mount Brackets
2.80 kg (6.17 lb) 2.89 kg (6.37 lb)
Total Non-Blocking Throughput 18 Gbps
Switching Capacity 36 Gbps
Forwarding Rate 26.78 Mpps
Max. Power Consumption Includes PoE Output Excludes PoE Output
150W 28W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 150W DC
LEDs Per Port RJ45 Data Ports SFP Data Ports
PoE, Speed/Link/Activity Speed/Link/Activity
Networking Interfaces (16) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
PoE Per Port
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 😎
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
