Sunix PCI 4 Port RS422/485 Card

Sunix PCI 4 Port RS422/485 Card

SKU: CTR-8159

$209.00 Incl. GST

In stock

Let me know if the price goes down
Send
Add to Wishlist

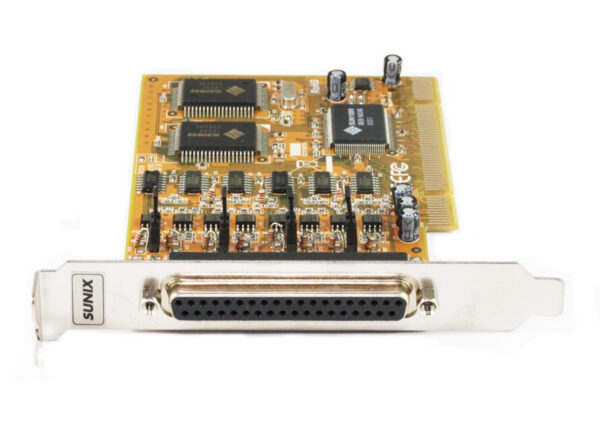

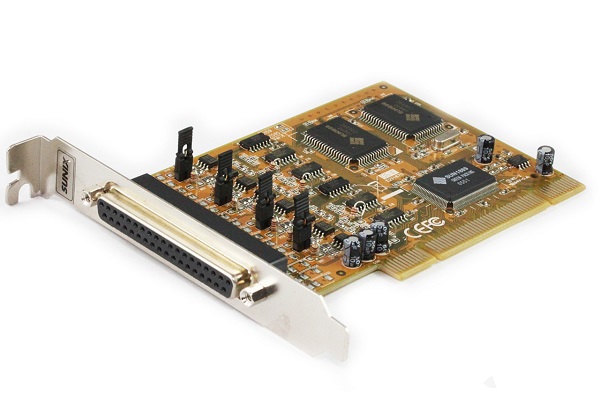

Sunix 8139 series Universal PCI serial communication board provides 4 independent RS-422 or RS485 ports,with up to 128K byte DMA FIFO buffer. The card is compatible with both 32/64 bit PCI architecture supporting 3.3 and 5V bus, allowing it to be installed in virtually any PC-based systems.

SKU: CTR-8159 Categories: , , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

Sunix PCI 4 Port RS422/485 Card

Sunix 8139 series Universal PCI serial communication board provides 4 independent RS-422 or RS485 ports,with up to 128K byte DMA FIFO buffer. The card is compatible with both 32/64 bit PCI architecture supporting 3.3 and 5V bus, allowing it to be installed in virtually any PC-based systems.



Features

  • Universal PCI Compatible with 64/32bit PCI-X/PCI Bus and 3.3/5V connector key
  • High Speed SUN1889 16C650 compatible UART controller on-board
  • On-chip hardware auto flow control to guarantee no data loss
  • Built-in 32 byte hardware FIFO & 128K byte DMA software FIFO
  • Handle RTS/CTS hardware handshake lines communation mode
  • SUNIX ARSC Technology for RS485 2 or 4 wire signal direction control
  • RS422 and RS485 auto Direct and Switch technology
  • Built-in 15KV ESD protection for all serial signals
  • Certifies by Microsoft WHQL,CE,FCC approval
  • Support DOS. Linux, Microsoft Win CE.NET,3x.,9x.,Me,NT,2000, XP and 2003
  • Ready for Intel and AMD 32/64bit CPU systems
