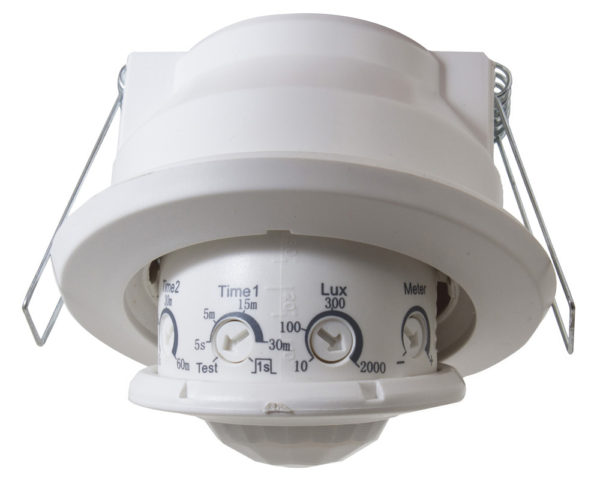

S-CLICK CPD-360/2, PRESENCE DETECTOR 360DEG 2 CH CEIL MOUNT-0

S-CLICK CPD-360/2, PRESENCE DETECTOR 360DEG 2 CH CEIL MOUNT

SKU: CPD-360/2

Original price was: $227.99.Current price is: $150.99. Incl. GST

In stock

Let me know if the price goes down
Send
Add to Wishlist

The CPD-360/2 is a dual load presence detector for lighting and HVAC control. The detector
features relays for outputs load I and load II respectively: load I allows for lighting control and
load II is potential free contact for HVAC control, such as heating, ventilation and air
conditioning.
The device features down light construction to enable quick and seamless mounting in various
ceiling board thicknesses. This omni-directional quad element detector has a unique lens to
provide “no dead spot” zones and superior sensitivity in its 360-degree detection coverage. The
detection beams are well distributed and concentrated over the detection coverage, allowing our
CPD-360/2 to detect even the smallest movements.
When additional coverage is required, this detector can be used in conjunction with a
compatible slave device. Our CPD-360/2S slave detector device is designed to be connected to
the power box of a CPD-360/2 in order to expand detection coverage.

SKU: CPD-360/2 Category: Tags: , Brand: Shipping, Availability & Return Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

Operating Specifications and Technical Data
LUX Adjustment: Adjustable from 10 Lux to 2000 Lux
Detection Range: Diameter 10m at 2.5 – 3m
Operating Temperature: 0 to +45 degrees Celsius
Environmental Protection: IP40 (Sensor), IP20 (Power box)
Length of signal cable: 1 metre
Circuit diagram and dimensions available, refer to the product User Manual.
Electrical Data
Rated Voltage: 230 +/- 10% 50/60H
Load I (L) for Lighting:
10 A (at 230 V AC, cos = 1), 3 AX (at 230 V AC, cos = 0.3)
Incandescent Lamp: max. 2000W
AC Halogen Lamp: max. 1000W
LV Halogen Lamp: max. 1000VA
Fluorescent Lamp: max. 900VA/100uF (compensated)
Fluorescent Lamp: max. 1000VA (uncompensated)
PL Lamp: max. 600VA
Load II (D1-D2) for HVAC:
Potential free contact for 250VAC or 30VDC Max:
Max 5A (cos =1)
Max 2A (cos =0.4) for 250VAC
Max 1/10HP (approx. 73W)
