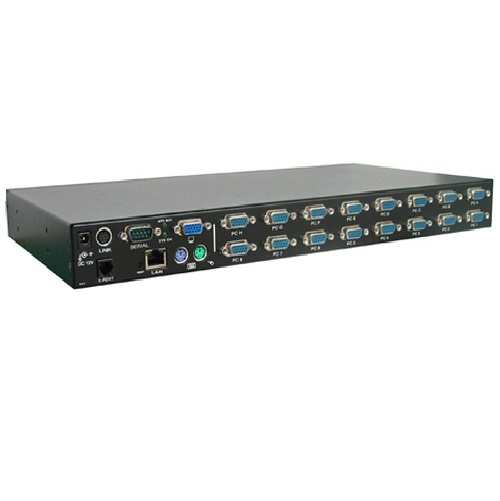

Rextron 16 Port KVM Switch Over IP
Features
– Embedded IPKVM module with 15″/17″/19″ LCD console drawer
– RoHs compliant
– 16 bits color depth supports up to 65,536 colors
– Unique OSD feature to guide the user finish the initial setup step-by-step
– Different user accounts may have different preferences
– Firmware online upgradeable 24/7
– Custom certificate upload
– Flexible access sharing modes
– VNC screen encryption
– Internal firewall
– Supports industry-standard networking and management protocols such as TCP/IP and SNMP
– Offers secure management options including SSL encryption, SSH tunneling, and RADIUS authentication
– Platform independent: can be managed using any Java-enabled web browser
– One remote management point for multiple computer
WUM-001 | WUM-108D | WUM-116D | ||
Console Port | 1 | 1 | 1 | |
Computer Port | 1 | 8 | 16 | |
Max Supported Video Mode | 1600 x 1200 @ 85Hz | |||
Connectors | LAN RJ-45 x 1 | |||
Serial Supervisor (RJ-14) x 1 | ||||
DB9 RS-232 Male (DTE) x 1 | ||||
DC In x 1 | ||||
Computer Connectors | Integrated Keyboard+ Mouse+ Monitor | HDB15 Female (Grey) x 1 | HDB15 Female (Grey) x 8 | HDB15 Female (Grey) x 16 |
Interface : USB + PS/2 Cable Type : CBM-xxxUH, CBM-xxxH |
||||
Console Connectors | Keyboard | PS/2 x 1 | ||
Mouse | PS/2 x 1 | |||
Monitor | HDB15 (Female) x 1 | |||
Regulatory Certifications | FCC Class A, CE, VCCI | |||
Power Consumption (Max.) | 18 Watts | |||
Dimensions H x W x D (mm) | 44 x 404 x 220 |
