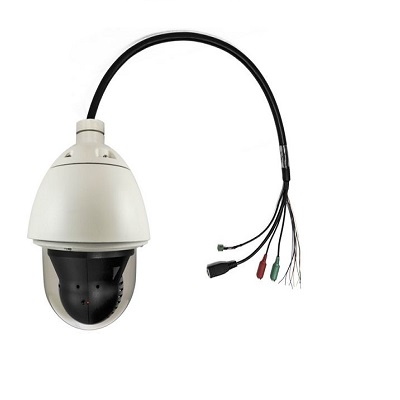

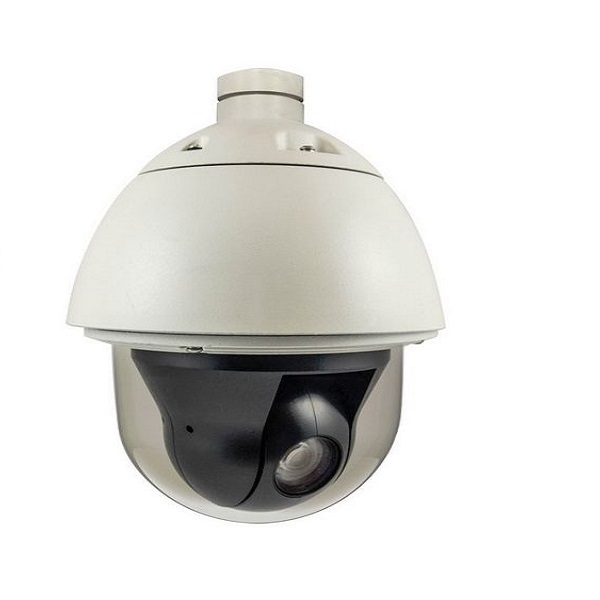

PTZ Dome Network Camera PoE-Plus 802.3af/at 2-Megapixel Outdoor 200x276x200mm White

PTZ Dome Network Camera PoE-Plus 802.3af/at 2-Megapixel Outdoor 200x276x200mm White

Superb performance speed dome network camera offering 2-Megapixel or 1080P resolution with superb image quality. Adopting 30x optical zoom lens and 1/2.8″ Sony Progressive Scan CMOS sensor. The IP66-rated housing protects the camera body against rain and dust and the wide temperature range ( -40°C ~ 50°C) It is especially suitable for monitoring wide open indoor or outdoor spaces where high-level reliability and precision are always required. This powerful, feature rich IP Network Camera offers users the most advanced features, includes WDR, Digital Noise Reduction, PoE-Plus(30W), SD/SDHC card slot, dual-codec, dual-stream, two-way audio, digital I/O, 802.1X authentication for network protection, Users can easily control the lens position via a mouse or a joystick to track the object of interest and set up to 256 preset positions for patrolling.

• 2-Megapixel (1920x1080p 30fps) True-HD high-definition resolution
• PTZ supports 360° pan, 190° tilt and 30x optical zoom (16x digital)
• IP67-rated (-40°C to 50°C) Vandal-proof IK09 for harsh environments
• Built-in Fan and Heater for circuit and lens stability & reliability
• Extreme WDR (Wide Dynamic Range 145dB) to enhance visibility under extremely bright or dark environments. Features 3DNR (3-Dimension Noise Reduction) to produce extremely clear picture quality even under very bright or low light and bad weather conditions.
• Extensive local control features. Programmable 3D privacy masks for private area protection, auto pan and patrol modes, etc. Motion detect, notification, etc. Built-in Micro SDHC/SDXC card slot for local storage.
• H.264/MJPEG. TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, ONVIF compliant. Removable IR-cut filter for day and night
• Dual power support: 24VAC or High-PoE (IEEE 802.3af/at) 25.44W
• Free video surveillance and CMS (Central Management System) software with 64-channel license compatible with iCamSecure.
• Requires mounting hardware solutions. See G1.5 45mm range.

Standards & Protocols:
IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Image Sensor: 2-Megapixel 1/2.8″ Progressive Scan CMOS
Connectors and Cabling:
1 x RJ-45 10/100 Mbps PoE plus port
1 x Line In
1 x Line Out
1 x Power terminal block
I/O terminal block (4 DI/2 DO)
Modularity: 1 x MicroSDHC/ MicroSDXC card slot
Lens: Zoom, DC iris, Auto focus, f4.3-129mm, F1.6-5.0
IR Cut Filter: Removable infrared-cut filter for day & night function
Shutter Time: 1/5 ~ 1/10,000 sec
Angle of View: 66.4° – 2.61°
Pan/Tilt/Zoom:
Pan range: 360°
Tilt range: -20° ~ 200°
30x Optical Zoom
16x Digital Zoom
Preset Point
Auto pan mode
Auto patrol mode
Video Compression: H.264 / MJPEG
Resolution: 2M (1920×1080)
Video Format: RAW
Audio Compression: G.711
Power Consumption: High PoE (IEEE802.3at) / 25.44 W (built-in heater and fan on), AC 24V / 31.5 W (built-in heater and fan on)
Power Input: AC24V / 802.3at PoE
