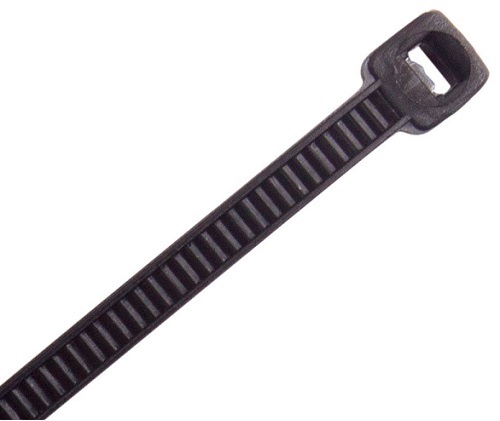

Nylon Cable Tie 300X4.8 MM Uv Black

Nylon Cable Tie 300X4.8 MM Uv Black-0

Nylon Cable Tie 300X4.8 MM Uv Black

SKU: CT290BK/1000

$73.00 Incl. GST

In stock

Let me know if the price goes down
Send
Add to Wishlist

Nylon Cable Tie 300*4.8Mm Uv Black

SKU: CT290BK/1000 Categories: , , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

NYLON CABLE TIE 300*4.8MM UV BLACK

Nylon Cable Tie UV Black – 290 x 4.8MM 1000 PK

The halogen free range of standard nylon cable ties meet the most basic of cable tie needs, with choices suitable for a wide range of size and strength requirements.

The one piece, injection moulded construction provides maximum strength and adjustability for securing all sizes of bundles. Extra features such as rounded edges and bent tip design make installation fast, easy, accurate and secure. Installation tools are not required but are suggested where controlled, uniform tension and cut-off applications are desired.

Note: Exterior applications should use black (UV stabilised) ties.

Features:

  • UV stabilised head/pawl integrally moulded for added durability. Tip designed for easy pick up, insertion and pull through
  • Smooth round edges do not cut insulation
  • Self-locking low profile head conserves space

Technical Data

Conformant Standards
UL; Mil Spec; IEC; VDE; DIN

Refer
MS 3367 MS 3368-physical dimensions
Mil-S-23190E – testing
Mil-Std-105D – sampling
Mil-C-45662 – test equipment calibration
Mil-1-45208A – QC manual and systems

Smoke Emission
Low smoke / Halogen free

Material
NATURAL – Nylon 66 with additives
BLACK – Nylon 66 with UV stabilisers

 Material Tensile Strength
80 N/mm2 or 11200 psi

Operating Temperature
-40°C to 85°C

Flammability
Passed – U.L. 94V-2

UV Stability
Exceeds ASTM-D-4066 with
2.5% carbon black giving nominal 15 years normal exposure to UV with less than 10% yield in tensile strength


Ordering Information

Part No.
Black (UV Rated)		 Part No.
Natural Colour		 Loop
Tensile
Strength
(Kg)		 Bundle
Diameter
(mm)		 Length
(mm)		 Width
(mm)		 Thickness
(mm)		 Pack
Qty
CT98BK/100 CT98NT/100 8 22 100 2.5 1.1 100
CT140BK/100 CT140NT/100 18 33 140 3.6 1.2 100
CT200BK/100 CT200NT/100 22 50 200 4.8 1.3 100
CT250BK CT250NT 22 60 250 4.8 1.4 100
CT290BK CT290NT 22 76 300 4.8 1.4 100
CT360BK CT360NT 22 102 370 4.8 1.4 100
CT430BK – 22 110 430 4.8 1.4 100
CT98BK/1000 CT98NT/1000 8 22 100 2.5 1.1 1000
CT140BK/1000 CT140NT/1000 18 33 140 3.6 1.2 1000
CT200BK/1000 CT200NT/1000 22 50 200 4.8 1.3 1000
CT250BK/1000 CT250NT/1000 22 60 250 4.8 1.4 1000
CT290BK/1000 CT290NT/1000 22 76 300 4.8 1.4 1000
Brand

Colour

Dimension
