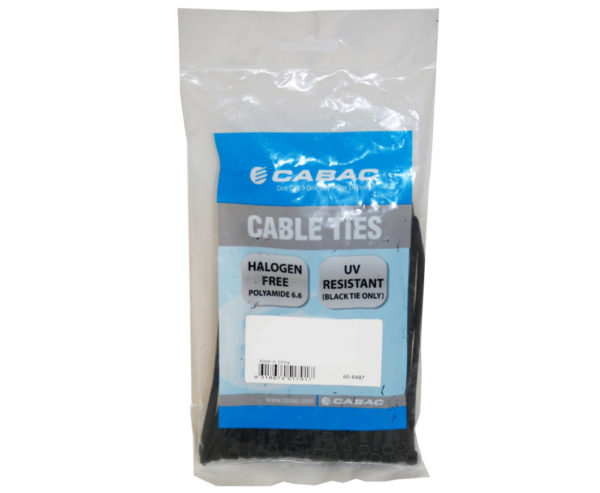

NYLON CABLE TIE 200*4.8MM UV BLACKÂ
- UV stabilised head/pawl integrally moulded for added durability. Tip designed for easy pick up, insertion and pull through
- Smooth round edges do not cut insulation
- Self-locking low profile head conserves space
- For outdoors – use UV stabilised black ties
The halogen free range of standard nylon cable ties meet the most basic of cable tie needs, with choices suitable for a wide range of size and strength requirements.
The one piece, injection moulded construction provides maximum strength and adjustability for securing all sizes of bundles. Extra features such as rounded edges and bent tip design make installation fast, easy, accurate and secure. Installation tools are not required but are suggested where controlled, uniform tension and cut-off applications are desired.
Note: Exterior applications should use black (UV stabilised) ties.
Technical Data
Conformant Standards | Material Tensile Strength |
UL; Mil Spec; IEC; VDE; DIN | 80 N/mm2 or 11200 psi |
Refer | Operating Temperature |
MS 3367 MS 3368-physical dimensions | -40°C to 85°C |
Mil-S-23190EÂ –Â testing | Â |
Mil-Std-105DÂ –Â sampling | Flammability |
Mil-C-45662 – test equipment calibration | Passed – U.L. 94V-2 |
Mil-1-45208A – QC manual and systems |  |
Smoke Emission | UV Stability |
Low smoke / Halogen free | Exceeds ASTM-D-4066 with |
 | 2.5% carbon black giving nominal 15 years normal exposure to UV with less than 10% yield in tensile strength |
 |  |
Material | Â |
NATURAL – Nylon 66 with additives |  |
BLACK – Nylon 66 with UV stabilisers |  |
