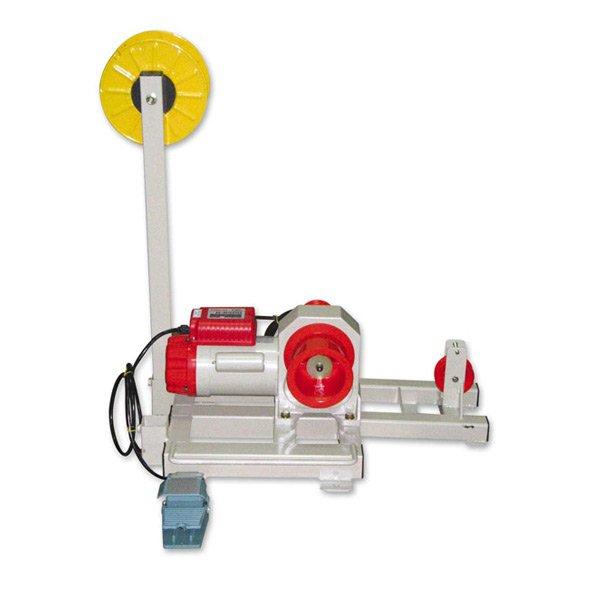

MSS Power MSS-H2500 240V Capstan Winch – 2.5Ton

240 Volt single phase cable puller with a dual pulling capacity of 2500kg and 1500kg
Overload protection switch – ensures automatic shut-off
Electromagnetic spring-applied fail-safe brake
Rugged high power induction motor for proven reliability
240V Electric Capstan Winch 1.5/2.5 Tonne
The Electric Capstan Winch is a 240 Volt single phase cable puller with a dual pulling capacity
of 2500kg and 1500kg (dual speeds vary according to the drum size).
240V Electric Capstan Winch 1.5/2.5 Tonne Features
ò Dual pulling capacity of 2500kg and 1500kg
ò Overload protection switch – ensures automatic shut-off
ò Electromagnetic spring-applied fail-safe brake
ò Heavy Duty high-efficiency ball bearings on all running surfaces
ò Rugged high power induction motor for proven reliability
ò Case hardened gear train for maximum mechanical efficiency
ò Rope storage reeler
ò Supplied with the 3-metre power supply cable
Important Information:
ò Do NOT use the Comeup Capstan Winch as a lifting device for vertical lifting
ò Suitable rope diameter is 7-12mm. The rope is not supplied as a standard
ò A minimum of six wraps of rope around the drum is necessary to support the rated load
Technical Information
Drum Type Large Drum Small Drum
Stock Code CAP250
Rated Capacity (kg) 1500 2500
Max. Pulling Duration (min) 15 15
Motor Output 240V 0.6kW IP44
Rope Speed (m/min) 4.0 2.5
Control Foot Control
Gear Ratio 154:1
Net Weight (kg) 60 60
