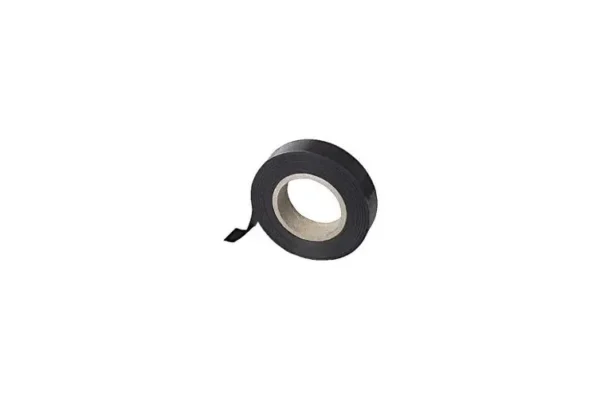

Heatshrink Tape 20Mm Wide, 50M Roll

HEATSHRINK TAPE 20MM WIDE 50M ROLL

Heatshrink Tape 20MM X 50M Roll

Heatshrink tape is a thin irradiated polyolefin tape that shrinks and amalgamates, forming a ridged seal on complex shapes. It is ideal for sealing complex shapes and the repair of damaged cables, forming T-joints and junctions.

To apply HST20, wind the tape loosely with about a two-thirds overlap, three layers at a time. After every three layers shrink the tape and then apply another three layers. Repeat this process until the desired insulation thickness is reached. The tape amalgamates during the shrinkage process.

Heatshrink Tape Features:

• High mechanical strength and rigid once shrunk
• Low water absorption
• Excellent chemical resistance
• Irradiated polyolefin which shrinks and amalgamates above 130°C
• Becomes continuous insulation with variable wall thickness
• Excellent for creating a waterproof seal
• Operating temperature -55°C to 105°C
• Standard roll 20mm x 50m

Conformant Standards:

• EC, VDE DIN

Technical Data:

• Material: Irradiated polyolefin
• Colour: Black
• Size:20mm x 50m Roll (approx. thickness 0.1mm)
• Temperature: Storageup to 90°C / Operating-55°C to +105°C
• Shrinkage temperature: Above 130°C
• Tensile strength: 0.5 kg/mm²
• Elongation at breaking point: 250%
• Breakdown voltage:30 kV/mm thickness
• Volume resistivity: Above 1 x 1015ohm cm
• Water absorption: 0.1%
• UV resistance: General UV stabilised

Ordering Information
Part No. HST20
