Elsafe Pip Panel Mounted USB-A / USB-C TUF 5A Charger Unit With Bezel Grey

Elsafe Pip Panel Mounted USB-A / USB-C TUF 5A Charger Unit With Bezel Grey

SKU: 521504

$245.00 Incl. GST
You save (%)

In stock

Let me know if the price goes down
Send
Add to Wishlist
SKU: 521504 Category: Brand: Shipping, Availability & Return Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

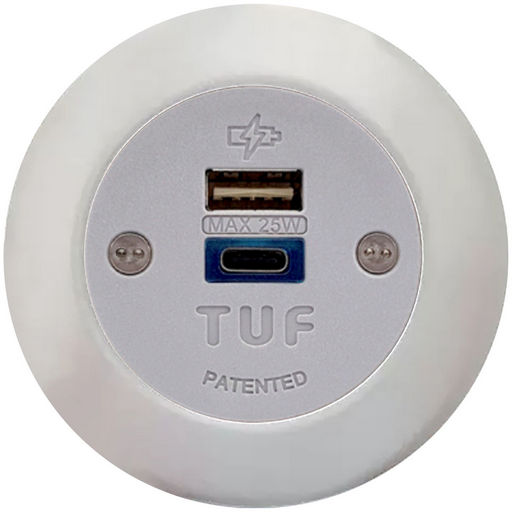

Elsafe Pip Panel Mounted USB-A / USB-C TUF 5A Charger Unit With Bezel

The Elsafe PIP TUF-PD Twin USB charger features a high power TUF 5A charging unit with 1x USB-A and 1x USB-C charging port. Designed specifically for panel mounting in furniture, PIP fits into a standard 60mm cable grommet opening and requires only 44mm depth. Integrated fixings enable quick installation in most surfaces from 0.9mm to 30mm thick, including panels with limited rear access. The 521502 is supplied as a prewired unit with a 2M long 10A 3-pin AC power cable, ready for installation.

Panel mounted power
• Single AC or TUF-PD USB fast-charging socket
• Specifically designed for panel mounting
• Fits standard 60mm cable grommet opening
• Only requires 44mm depth
• Integrated fixings for fast installation in surfaces from 0.9mm to 30mmn thick
• Ideal for panels with limited rear access
• Can be daisy-chained via JCoupler.
• Ideal for soft furnishings or lockers
• Black, white, stainless steel or colours on request

CONFIGURATIONS
Single 42mm type AC power socket or TUF-PD USB fast charging socket.
CONSTRUCTION
• Body and back – Nylon
• Socket fascia – Polycarbonate
• Bezel – ABS with optional metal inlay
INTEGRAL FIXINGS
• Panel mount clips for surfaces 0.9mm – 3mm thick
• Screw clamps for surfaces 0.9mm – 30mm thick

Product Specs

Code 521504
Cable 2M lead to 10A 3-pin plug
Colour Grey/Grey
Manufacturer Elsafe
USB 1x USB-A, 1x USB-C
Power 25W max
