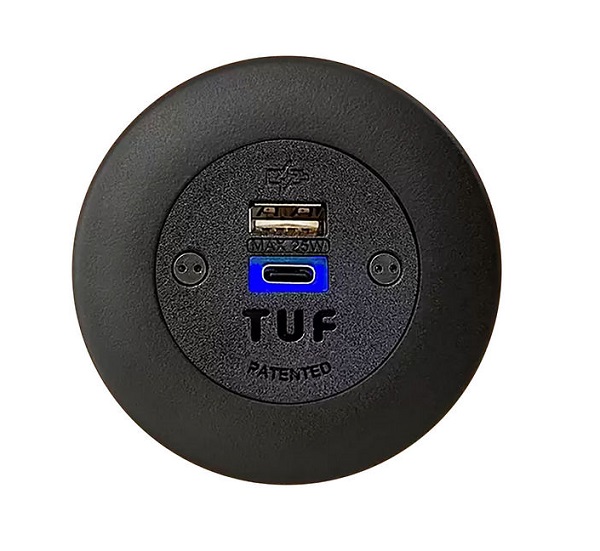

Elsafe Pip Panel Mounted USB-A / USB-C TUF 5A Charger Unit With Bezel
The Elsafe PIP TUF-PD Twin USB charger features a high power TUF 5A charging unit with 1x USB-A and 1x USB-C charging port. Designed specifically for panel mounting in furniture, PIP fits into a standard 60mm cable grommet opening and requires only 44mm depth. Integrated fixings enable quick installation in most surfaces from 0.9mm to 30mm thick, including panels with limited rear access. The 521502 is supplied as a prewired unit with a 2M long 10A 3-pin AC power cable, ready for installation.
Panel mounted power
• Single AC or TUF-PD USB fast-charging socket
• Specifically designed for panel mounting
• Fits standard 60mm cable grommet opening
• Only requires 44mm depth
• Integrated fixings for fast installation in surfaces from 0.9mm to 30mmn thick
• Ideal for panels with limited rear access
• Can be daisy-chained via JCoupler.
• Ideal for soft furnishings or lockers
• Black, white, stainless steel or colours on request
CONFIGURATIONS
Single 42mm type AC power socket or TUF-PD USB fast charging socket.
CONSTRUCTION
• Body and back – Nylon
• Socket fascia – Polycarbonate
• Bezel – ABS with optional metal inlay
INTEGRAL FIXINGS
• Panel mount clips for surfaces 0.9mm – 3mm thick
• Screw clamps for surfaces 0.9mm – 30mm thick
Product Specs
Code | 521500 |
Cable | 2M lead to 10A 3-pin plug |
Colour | Black/Black |
Manufacturer | Elsafe |
USB | 1x USB-A, 1x USB-C |
Power | 25W max |
