CAT5 Extender Redback Vertical Wallplate

Name: CAT5 Extender Redback Vertical Wallplate
Brand: Cables Online
SKU: PA4931V
Price: 153 AUD
Availability: InStock
Rating: 5 (1 reviews)

SKU: PA4931V

$153.00 Incl. GST

Let me know if the price goes down

Your name

Your email

Send

QUICK OVERVIEW

CAT5 Extender Redback Vertical Wallplate

SKU: PA4931V Categories: Jacks and Wallplates, Network Cabling Accessories, New Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

Seen it cheaper? Ask our team for a CABLESONLINE Deal.

1300 178 620

CAT5 Extender Redback Vertical Wallplate

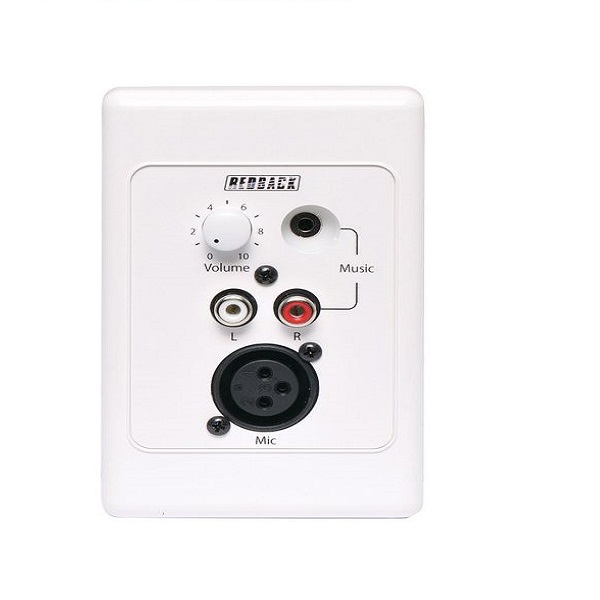

This mic/line pre-amp wallplate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the PA4928 Receiver. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output. The wallplates receive power down the Cat5e cable from PA4928.

This mic/line pre-amp wallplate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the PA4928 Hub. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output. The wallplates receive power down the Cat5e cable from PA4928.

The Redback CAT5 Extender series is desingned to send and receive audio over CAT5 cable up to a maximum distance of 300 metres. An installation requires one receiver PA4928 and your choice of sender being a PA4932 unit or wall plate style options PA4931 (Horizontal) or PA4931V (Vertical), all sold separate. The input to output is either a balanced microphone XLR, or line level stereo audio via RCA or 3.5mm. The receiver includes a mains power pack and phantom powers the senders via the CAT5 cable. These units are of premium quality and performance and made in Australia by Redback.

Input Mic Level Sensitivity: 3mV
Input Line Level Sensitivity: 1V
Music Input Level Sensitivity: 500mV
Output Connector: RJ45 8P8C
Input Connectors: Audio: 3 pin XLR balanced 2 x RCA, 3.5mm Jack

Manufacturer	Redback
Type	Vertical
