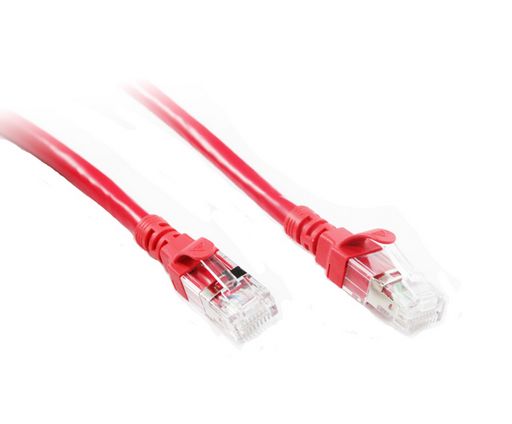

Cat 6A 10GB SSTP/SFTP Patch Cables
CAT6A ( CAT6 Augmented ) cable is an ideal solution for 10G network. It supports the higher frequencies required for 10G Ethernet and fully backwards compatible with CAT6 and CAT5e. All of our CAT6A cables are double shielded and fully screened to ensure immunity from Alien Crosstalk and other external interference and are specified up to frequencies of 500Mhz.Â
SSTP (Screened Shielded Twisted Pair) or SFTP (Screened Foiled Twisted Pair) cabling offer shielding between the pair sets and an overall sheath shield within the 100 Ohm twisted pair cable. This type of shielding protects EMI from entering or exiting the cable and also protects neighbouring pairs from crosstalk.
Meets all augmented CAT6A TIA-568-C.2 requirementsÂ
Ideal Cable for 10 Gigabit ApplicationÂ
High Performance Data Communication CableÂ
Guaranteed Performance up to 500MhzÂ
1kV AC for 60secs dielectric strengthÂ
Max. 50N pulling tensionÂ
Minimum 8x cable diameter bending radiusÂ
Temperature range: 0-50°C (Installation), -10-60°C (Operation)Â
100Ohms mean characteristic impedanceÂ
68% nominal velocity propagationÂ
Fully screened for alien crosstalk immunityÂ
Fully shielded construction virtually eliminates ANEXTÂ
Fire Resistant/Flame Retardant PVC JacketÂ
50u gold-plated and shielded CAT6A connectorsÂ
Cable features four individually aluminium/Mylar wrapped twisted pairs, and an overall tinned copper braided shield, foamed PE insulation, and an FR PVC jacketÂ
26AWG stranded copper conductorsÂ
Specially designed RJ45 shielded plug with 50u gold-plated contactÂ
Snagless designed boot provides tab protection
Australian Approval Â
ANSI/TIA 568C.2 ApprovalÂ
UL Approval UL444Â
ISO/IEC60332-1 ApprovalÂ
ISO/IEC60332-3 part 24 ApprovalÂ
ISO/IEC 11801 ApprovalÂ
EN50288-4-2, EN50173 Approval
