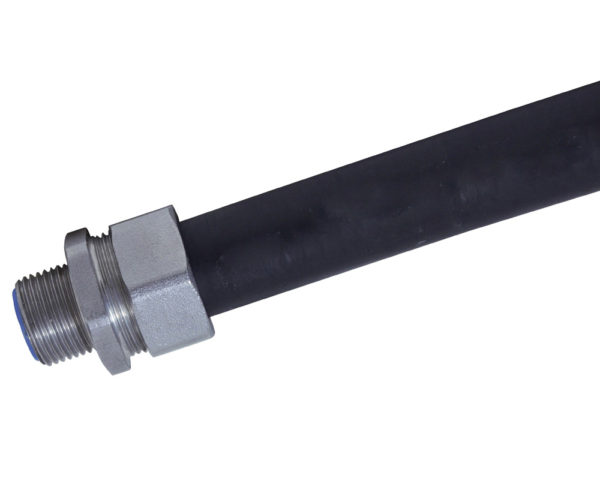

CABFLX LTCM-S16, LIQUID TIGHT STR S/STEEL FITTING 63MM

304-grade stainless steel liquid tight straight configuration presents a male thread
Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
High performing corrosion and chemical resistance, high mechanical strength
Ex ta IIIC IP66 Hazardous Area Type Protection
IEC Ex TSA 11.0026 Hazard Area Certification Number
Stainless Steel Straight Conduit Fittings Male Thread
The CABFLX range of liquid tight conduit fittings provide quick and reliable wiring protection for
a range of industrial and commercial applications. Our male thread fittings feature an external
thread for threaded entries and knockouts, and are designed to securely attach the conduit to
enclosures, machinery, or bulkheads.
Our stainless steel conduit fittings feature superior corrosion and chemical resistance. With a
dustproof, liquid-tight seal, LTCM fittings are suitable for installations that require mechanical
and environmental protection. Possible applications include machining centers and robotics,
general wiring for OEM applications, low fire hazard applications, underfloor wiring in the office
buildings or any narrow space in static applications.
All liquid-tight fittings are supplied complete with a sealing ring and a flanged grounding cone for
excellent pull-out strength. The one-piece installation makes these fittings easy to use; the fitting
simply swivels on the conduit until tightened.
Technical Data
Material
Connector body: 304 Stainless Steel
Hexagonal nut: 304 Stainless Steel
Sealing ring: Nylon 66
Ferrule: Galvanised steel
Dimensions
Thread size: 63mm
Conduit size: 63mm
A: 34mm
B: 20mm
C (hex max): 80mm
Refer to line drawing for reference (see Additional Information)
