Extra flexible electro galvanised steel conduit – interlocked and helically wound with black
PVC Vacuum Jacket
UV resistant, the temperature rating of -20 to +70 degrees Celsius
High mechanical protection and moisture resistance
Suitable for tight complex bends and dynamic moving installations

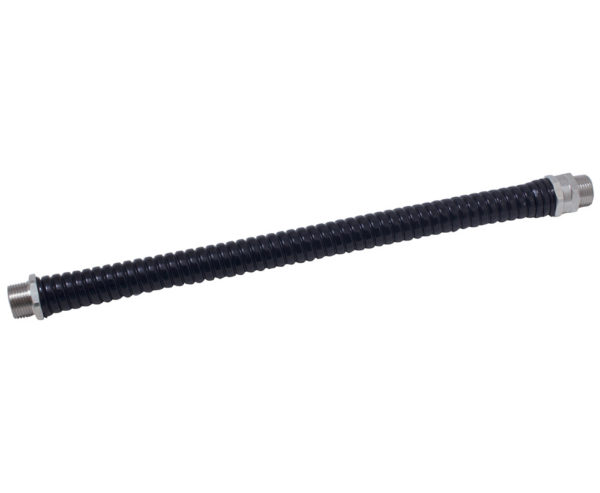

Flexible Steel Electrical Conduit with Black PVC Vacuum Jacket
CABFLX Extra Flex is a lightweight electrical conduit designed specifically for installations
where extreme flexibility is required. The strong, electro galvanised steel core offers reliable
mechanical protection in static, tight bend or dynamic installations. A thin, UV resistant PVC
the jacket provides enhanced moisture protection with only a minimal effect on the overall flexibility
of the conduit. Use our Extra Flex conduit to protect electrical wiring in complex applications
such as machining centers or robotics.
The Extra Flex range also includes compatible brass fittings in fixed and swivel varieties.
Alternatively, CABFLX CVJC conduit is also compatible with our Liquid Tight IP66 fittings in
steel, brass, or stainless steel.
Technical Data
Material: Galvanised Steel with PVC jacket
Temperature rating: -20 to +70 degrees Celsius
Nominal Size: 20mm
Length: 25 metres
