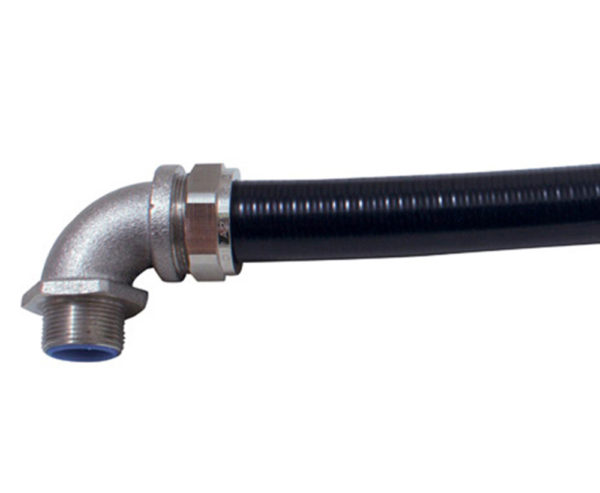

Cabflx CLT20BK Liquid Tight Metal Conduit 20Mm Bk 25M

Heavy-duty, flexible spiral wound conduit made from hot-dipped galvanized steel with
corrosion-resistant core
UV stabilized black PVC jacket, superior chemical resistance, IP66 with CABFLX fittings
Compression resistant to HD rating of 1250 Newtons
Operating temperature -10 to +105 degrees Celsius, resistance to burning
Custom Cut Lengths Pre-Terminated on request MOQ’s Apply
Heavy Duty Flexible Galvanised Steel Conduit
The CABFLX range of heavy-duty steel conduit offers superior cable protection for commercial
or industrial projects where a liquid-tight conduit system is required.
This general-purpose metallic conduit features a spiral wound, interlocked galvanized steel core
to ensure excellent strength and flexibility. The addition of a durable, UV stabilized PVC jacket
creates a liquid-tight conduit that is non-flame propagating and resistant to most oils, acids, and
vapours. This combination of mechanical and environmental protection makes CABFLX Liquid
Tight Conduit is suitable for many indoor or outdoor cable installation projects.
Technical Data
Material: Galvanised steel core, PVC jacket (black)
Compression Resistance: 1250 Newtons
Operating temperature: -10 to +105 degrees Celsius
Nominal Size: 20mm
Trade Size: 1/2″
ID: 16.1mm
OD: 21.1mm
Min. Bend Radius: 65mm
Length: 25m
Note: Custom cut lengths can be supplied pre-terminated upon request (MOQ applies).
