To ensure compatibility the gland must be terminated into a metal enclosure or terminal box.
The shielding of the cable should be stripped back to the point where the gland enters the
enclosure. The gland is passed over the cable and the shielding terminated into the bottom of
the gland. The gland is then screwed together and connected to the enclosure.
What does EMC mean?
Electromagnetic compatibility (EMC) is a characteristic which refers to the ability of an electrical
or electronic device or system to function satisfactorily in its electromagnetic environment,
without introducing intolerable electromagnetic interference (EMI) to anything in that
environment.
EMC encompasses controls of both unintentional emissions from a range of products that can
interfere with radio communications, as well as protection of a range of devices that may be
susceptible to intentional transmissions.
In order to effectively terminate shielded EMC cables, a suitable EMC gland is required.

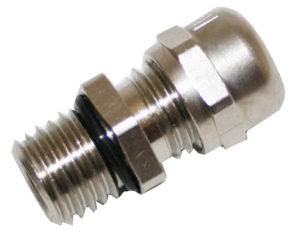

Cabac GU50EMC/L Met.Gland: Od 26-35 Shielded-Long
SKU: GU50EMC/L
$105.00 Incl. GST
In stock
Our range of easy to use EMC glands are designed for the effective termination of mesh or foil
shielded EMC cable. The product is comprised of a corrosion-resistant, nickel-plated brass body
with a polyamide insert and NBR rubber seal.
The gland utilizes a camera-shutter type cable seal to achieve an IP68 (5 bar) waterproof rating
whilst still supporting a wide cable diameter range. The product has integrated strain relief
capability and includes a cable shield connection.
Dimensions
Mounting Diameter (A): 50mm
Thread Length (B): 14mm
Min. Cable Range: 26mm
Max. Cable Range: 35mm
Width A/F: 55mm
Locknut sold separately: LNM50EMC
View the product range to browse sizes from 12mm to 63mm metric thread. Determine the size
you need with our EMC gland selection chart, see the product data-sheet.
