Cabac Digital RCD Tester – 240V
- Residual Current Device (RCD) or ELCB trip time tester with LED indication for power, battery and mains polarity
- Simply select earth leakage resistance test value
- Displays adjustment percentage for high and low voltage
- Suitable for 10A and 30 mA RCDs. Compatible with Aust plug to 3 core banana plug adaptor TEL-EL
- CAT III 300V

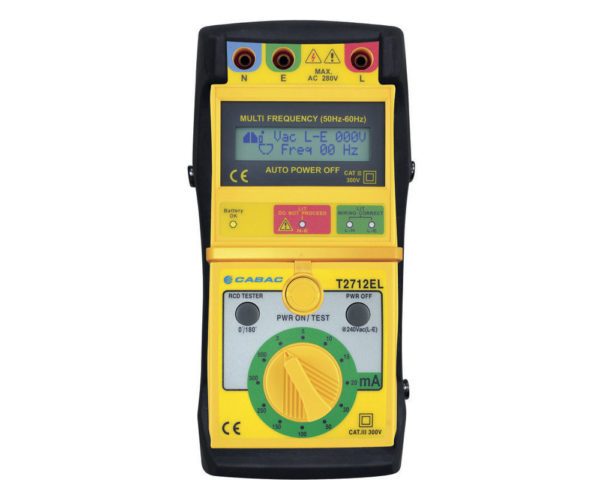

The T2712EL is a compact, easy to use RCD tester that is suitable for installation testing to AS/NZS3017 and AS/NZS3760. The rotary selector switch has 12 ranges to select the tripping current. It features a battery and power “on” indicating LED and indicating LEDs for the correct and incorrect wiring polarity e.g. power outlet. There is a button to select the starting angle of the fault and a Power “on/test” button. The terminals are colour coded for easy reference. This RCD tester can be used on generator circuits. The RCD tester will display the starting phase angle, the trip time and the percentage adjustment for voltage change from 240V ac.
• Coloured coded terminals
• CAT III 600V
• Microprocessor driven menu
• Incorrect wiring warning indication
• Battery and power on indicator
• Test angle selection
• Show % deviation
• Compact rugged boot for increased protection
• Displays AC frequency
• Digital display- indicates phase angle, time to trip, %
adjustment for voltage and change to 240Vac
• Correct wiring indication
• On/Off power button
• Selector switch for current leakage 3 to 500mA
• Suitable to use on generators
• Designed for testing AS/NZS3017 + AS3000 + AS/NZS3760
