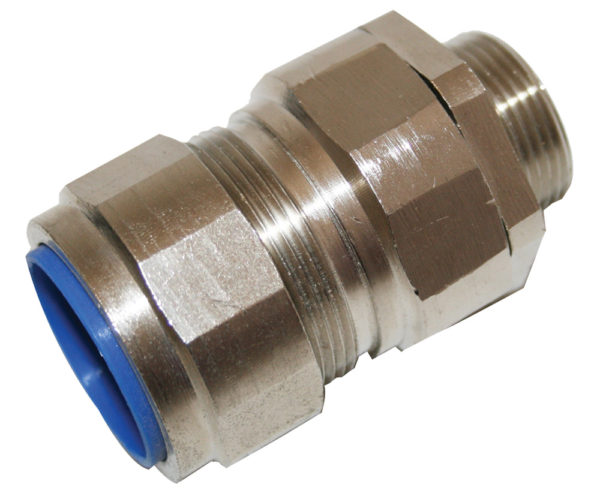

Cabac CW50S SWA Gland Cable 36.5-46.7

The CABAC range of armoured metal glands are a weatherproof solution when working with
steel wire armoured cable.
The brass body is protected by anti-corrosive nickel plating that prevents deterioration. A
neoprene rubber seal to the cable outer jacket excludes dust and water with a protection rating
of IP66.
Each gland can accommodate a generous cable range to simplify product selection. Suitable for
PVC and XLPE insulated armoured cables
To install, simply follow normal gland installation practices. Our SWA glands feature a wedge
seal which deflects inwards. This unique feature makes our product easier to work with than
conventional glands and saves the installer valuable time.
Lock nut sold separately.
Dimensions
Mounting Thread Dia. (C): 50mm
Thread Length (D): 15mm
Max. Under Armour Cable Range (A): 38.1mm
Min. Cable Range (B): 36.5mm
Max. Cable Range (B): 46.7mm
Armour Wire Dia.: 2.0-2.5mm
Across Corners: 61.3mm
Shroud: SH6
Tip: to ensure you choose the correct gland, it is essential to make sure you have determined
the over and under armour dimensions of your cable- this data can be found in cable
manufacturers technical books or by measuring the cable.
Available in a range of sizes, refer to the product data sheet for a handy SWA gland selection
chart.
Technical Data
Body: Brass
Finish: Nickel plated
Seal: Neoprene rubber
Conformant Standard: BS6121: Part 1:1989
