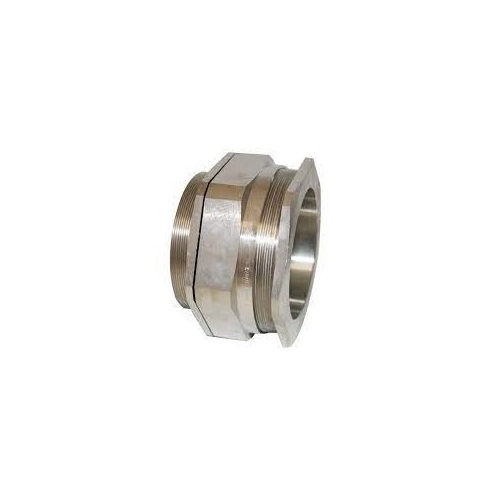

The CABAC A2 range of glands are ideal for general purpose use with unarmoured PVC and
XLPE sheathed cables.
These glands are rated IP66, meaning they are dust-tight and weather resistant. The product
features a nickel-plated brass body which protects against the threat of corrosion and a
neoprene seal that clamps onto the sheath of the cable.
Locknut included.
Dimensions
Mounting Thread Diameter (C): 75mm
Thread Length (D): 15mm
Min Cable Range (B): 60.5mm
Max Cable Range (B): 67mm
Dim. Across Corners (E): 94mm
Available in a variety of other sizes view the product range for more information.
Tip: When selecting a cable gland, it is essential to keep in mind that cable dimensions vary by
manufacturer and insulation type. To determine what size you require, first, establish the outside
diameter of the cable by measuring it or by referring to the cable manufacturers’ handbook.
Once you have confirmed the size of your cable, refer to the product datasheet for a gland
selection guide.
Technical Data
Conforms to BS6121: Part 1:2005
Body: Brass
Seal: Neoprene rubber
Finish: Nickel-plated
