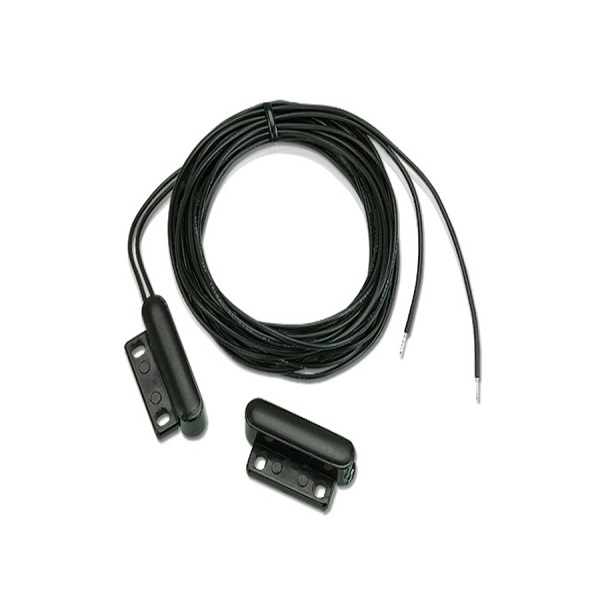

Aten Reed Door Sensor

Aten Reed Door Sensor

For the security of your data center, ATEN provides Reed Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure’s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.

* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.

**Support PE7/PE8/PE9 series only

The Reed Door Sensor allows the monitoring of a rack mounted enclosure´s door access – notifying users when a door has been opened
High sensitivity
Easy operation

witches
Switching voltage(Max) 70v AC / DC
Switching current 50 mA
Contact capacity(Max) 1 watt
Initial contact resistance 0.2 Ohm(Max)
Carry current (Max) 100 mA
Breakdown voltage 150 VDC
Insulation resistance 100 Mohm(Min)
Switch cycle 5x 107´ at 12 V, 50 mA
Sense gap 16 mm(Min)
Environmental
Operating Temperature -20°C–60°C
Humidity 80°C 95% RH
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
