Aten Differential Pressure and Temperature Sensor
For the security of your data center, ATEN provides Photo Door sensor probes that work in tandem with the Power Distribution Units, which allows the monitoring of a rack mounted enclosure´s door access, notifying users when a door has been opened. Various conditions can be monitored with alarms according to customizable minimum/maximum settings.
* The Sensor is an optional accessory and you can use the ATEN PDU without the door sensors. However, if you want to have complete security management of your data center with the full use of ATEN solutions, a sensor installation is required.

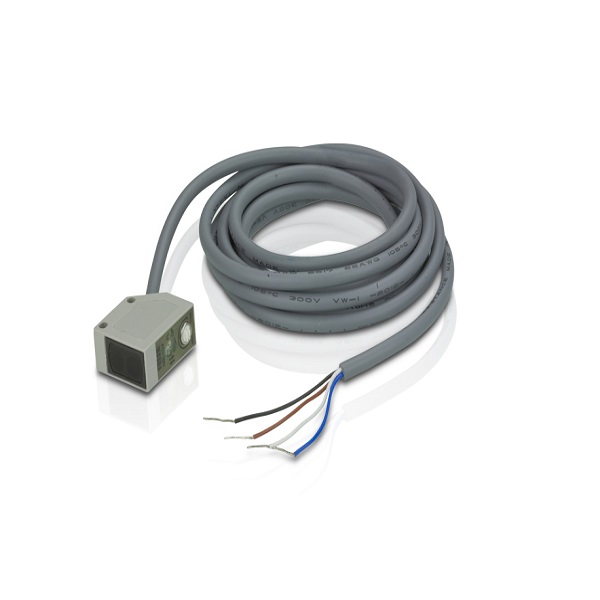

The Photo Door Sensor allows the monitoring of a rack mounted enclosure´s door access – notifying users when a door has been opened
High sensitivity
Easy operation
Sensing distance 10 cm
Operating voltage 10 – 30 VDC; Ripple<20% Peak to Peak
Current Consumption 30 mA(Max)
Output method NPN & PNP Two Output
Output status Normal open NO type
Output current 150 mA(Max)
Leakage current 0.8 mA(Max)
Residual voltage 0.6 mA(Max)
Protection circuit Short Circuit & Polarity Protection
Sensor Response Time 1 ms(Max)
Sensitivity adjuster 270° Trimmer
Hysteresis 10% of Sensing Distance Max
Emitter Infrared LED
Illumination Sunlight < 10,000Lux.; Lamplight < 5,000Lux.
Physical Properties
Housing Plastic
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
