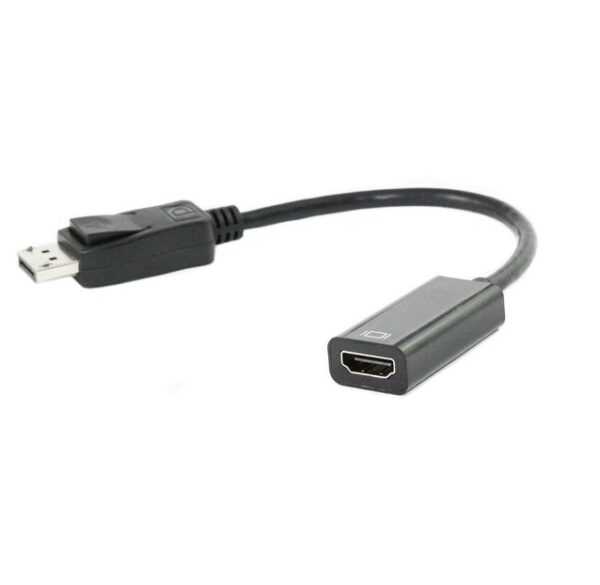

Active Displayport 1.4 to HDMI 2.0 Adaptor 4K2K 60Hz

Active Displayport 1.4 to HDMI 2.0 Adaptor 4K2K 60Hz

SKU: CO-CB-ADP-HDM4K60Hz

$45.00 Incl. GST

In stock

Let me know if the price goes down
Send
Add to Wishlist

The DisplayPort to HDMI Active adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a HDMI monitor, projector or display, including televisions and LCD panels, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.

SKU: CO-CB-ADP-HDM4K60Hz Categories: , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

Active Displayport 1.4 to HDMI 2.0 Adaptor 4K2K 60Hz

The DisplayPort to HDMI Active adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a HDMI monitor, projector or display, including televisions and LCD panels, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.

Unlike passive adapters, this DP 1.4 to HDMI 2.0 converter offers an active conversion for use with any DisplayPort output – ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 4K2K at 60hz, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing HDMI monitors, televisions or projectors.

Specifications

With the latest Parade PS-176 Chip. Full Specifications of PS-176 are available from this link: https://www.paradetech.com/products/ps176/

  • Integrates a DisplayPort receiver and HDMI 2.0 transmitter for video format conversion
  • Supports display resolution up to 4096 x 2160 at 60Hz frame rate with 24-bit color and 4:4:4 color sampling, using a 4 lane DP 1.2a, DP 1.3, or DP 1.4 input at the HBR2 (5.4Gbps) data rate
  • Jitter cleaning PLL provides stable HDMI output signal with wide compliance margin
  • HDCP 1.4 and HDCP 2.3 repeater function with on-chip keys
  • Internal YCbCr 4:4:4 /4:2:2 to YCbCr 4:2:0 conversion capability
  • Includes on-chip microprocessor with internal SPI ROM
  • 1.2V core power supply & 3.3V I/O power supply
  • Low power consumption
  • Internal crystal oscillator, supports external crystal or reference clock
  • ESD: HBM 7kV
  • 48-pin 6x6mm QFN package, RoHS Halogen free

Please note, this Active adapter supports 3 monitor display configurations powered by AMD Eyefinity Multi-Display technology.
