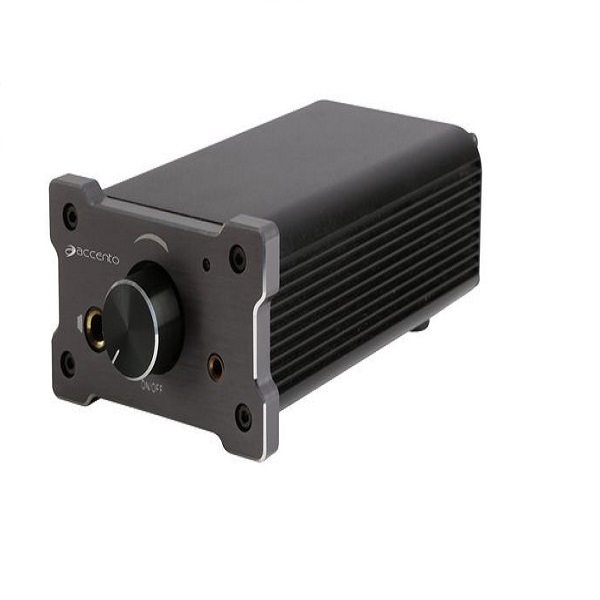

Accento Dynamica 120w Amplifier Class D Black
The small and powerful Accento Dynamica ADA-120 Class D amplifier installs virtually anywhere. It produces big-amp sound while occupying minimal space on your desk or A/V cabinet. The compact size makes it an ideal choice for small areas with limited space or for those looking for a cleaner audio environment, yet still delivers crisp, vibrant sound comparable to bulky power amplifiers. This unit features the STA508 chipset that provides 60 watts of continuous power per channel (120 Watts total) into a 4 ohm load and 40 watts into an 8 ohm load.
- STA508 chipset Audiophile-quality sound
- Compact modern style & minimal decor impact
- Ultra-quiet 103 dB signal to noise ratio
- 40Wrms (8Ω), 60Wrms continuous into 4Ω
- Rear gold-plated RCA inputs
- Front-mounted gold-plated 3.5mm input (over-rides)
- Gold-plated speaker connections (wire or 4mm)
- 6.35mm Headphone gold-plated output socket
- Compact extruded aluminium heat sink enclosure
- Thick, stylish black-anodized aluminium face plate
- One simple control: Volume pot with Off position
- Short circuit, thermal, and overload protection
Power Output: 60 watts RMS x 2 into 4 ohm
40 watts RMS x 2 into 8 ohm
Total Harmonic Distortion: <0.01% @ 30W per channel
<10% @ 60W per channel (4 Ohm)
Speaker Impedance: 4 ohm to 8 ohm
Signal-to-Noise Ratio: 103 dB, A weighted
Input Impedance: 10k ohms (minimum)
Input Sensitivity: 680 mV
Frequency Response: 20-20,000 Hz
Channel Separation: 95 dB
Efficiency: >85%
Dynamic Range: >100 dB
Electrical Requirement: 24VDC @ 5A center pin positive
Dimensions: 50mm(H) x 86mm(W) x 160mm(D)
Weight: 540g
Includes SMP24V6A-25P
