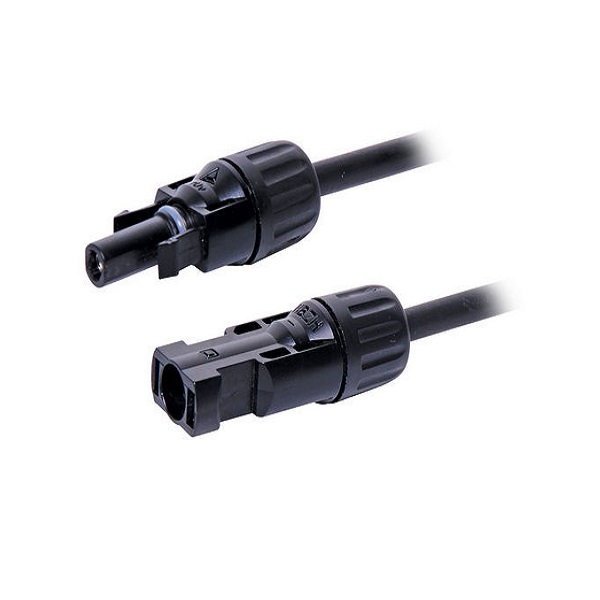

5m MC4 Male To Female Solar Cable
Note that this connector is a single contact type plug so you can arange solar panel connections in series.
Water & dust proof – IP67 Rated. This lead can be used for connections in photovoltaic solar panel arrays. The fully sealed design is suitable for use in exposed installations. 30A rated current.
Rated Current: 30A
Rated Voltage: 1000V DC (TUV) / 600V DC(UL)
Test Voltage: 6KV(50Hz,1min)
Protection Degree,mated: IP67
Protection Degree,Unmated IP2X
Wire Size Range: 4mm² / 12AWG
Flame Class: UL94-V0
Insulation Material: PC&PPO
Temperature Range: -40°C…+85°C (TUV)/ -40°C…+90°C (UL)
Certification: TUV & UL
Note: The SC1615 removal tool is not suitable for use on SL8618B.
