5-Port Fast Ethernet Switch With 4 PoE+ Ports And DIP Switch

5-Port Fast Ethernet Switch With 4 PoE+ Ports And DIP Switch

SKU: ES-5104PH

$75.00 Incl. GST

Out of Stock, Call for Availability

5-Port Fast Ethernet Switch With 4 PoE+ Ports And DIP Switch 121x75x26mm

Add to Wishlist
SKU: ES-5104PH Categories: , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

5-Port Fast Ethernet Switch With 4 PoE+ Ports And DIP Switch

BUILT-IN DIP SWITCH FOR MANUAL PoE CONTROL

Overview

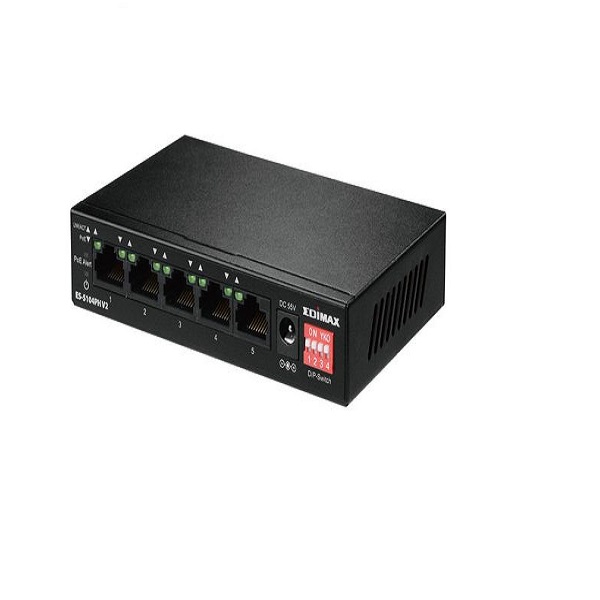

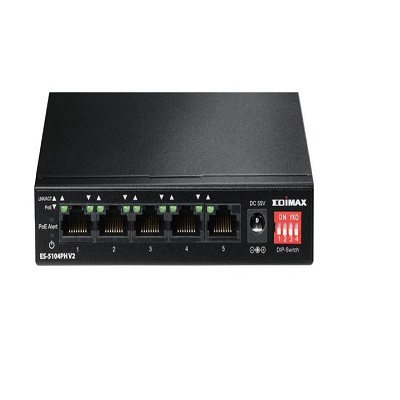

The Edimax ES-5104PH V2 is a 5-port Fast Ethernet switch with 4x PoE+ Ports designed for use in home, small or medium sized network environments. With 4x DIP switches, PoE ports can be manually set with on/off control, extending PoE delivery distance up to 200 meters and port-based on/off control for VLAN and QoS is also supported. The switch easily connects and supplies power to PoE-enabled devices such as wireless access points, network cameras and IP phones as well as other Ethernet-enabled devices such as computers, printers or network attached storage (NAS). The compact size and fan-less design make the switch an ideal solution for home and small business networks.

  • Five 10/100Mbps Fast Ethernet ports and four PoE+ ports
  • IEEE 802.3af/at PoE compliant (ports 1 – 4) for simplified deployment and installation
  • Up to 30W per PoE port (total power budget: 60W) for powering PoE-enabled devices
  • Auto-detection of powered devices (PD) and power consumption levels
  • Hardware DIP switch for “Standard” and “Extend” mode selection; the “Extend” mode features 30-watt PoE transmit distance of 200m at speed of 10Mbps
  • Port-based VLAN and Loop Protection features
  • Supports 802.1p Quality of Service (QoS)
  • Plug & play, no installation required & Fanless quiet operation
  • External power adapter included
Manufacturer

Edimax
Size

121x75x26mm
Speed

100Mbps
Ports

5x 10/100M ethernet (4x PoE+)
Switching Capacity

1Gbps
PoE Power

60W
Extended Mode

PoE up to 200M

Reviews

There are no reviews yet.

Be the first to review “5-Port Fast Ethernet Switch With 4 PoE+ Ports And DIP Switch”
5-Port Fast Ethernet Switch With 4 PoE+ Ports And DIP Switch_Brochure
