4x HDMI 4K UHD 18Gbps HDR Splitter

4x HDMI 4K UHD 18Gbps HDR Splitter

SKU: CPLUS-V4E

$442.00 Incl. GST

Out of Stock, Call for Availability

4x HDMI 4K UHD 18Gbps HDR Splitter 231.5x108x25mm

Add to Wishlist
SKU: CPLUS-V4E Categories: , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

4x HDMI 4K UHD 18Gbps HDR Splitter

4K UHD 18GPS HDR 1×4 HDMI Splitter, does not support ‘Deep Color’

This 1 by 4 HDMI Splitter with HDCP 2.2 high performance up to 4K@60Hz YUV444 3840x2160px. Includes system reset function CEC. HDMI input supports Standard or TV mode for EDID settings.

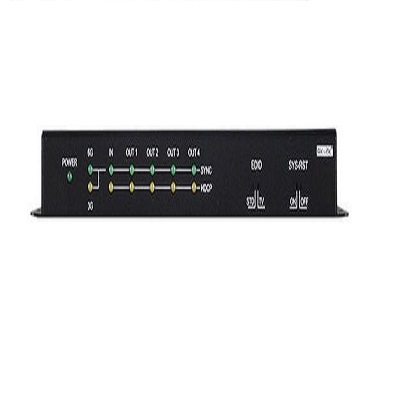

This 1 by 4 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting and distributing a single HDMI input to four HDMI outputs. It provides high performance audio and video output up to 4K2K@60Hz (YUV444) resolution and is capable of providing high levels of audio and video performance. It supports passthrough of high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio and Dolby Atmos with audio sampling rates up to 192kHz. Input and outputs status are indicated on the front panel. The System Reset function allows the unit to reset the TV to its default HDMI input automatically.

HDMI (with 6G audio/video support), HDCP 2.2 and DVI compliant (note: does not support ‘Deep Color’/color space – YCbCr 422/444)
1 HDMI input and 4 HDMI outputs
Supports System Reset function (CEC active source command)
Simultaneous display of a single Ultra High-Definition source on up to 4 UHDTV displays
3D passthrough with compatible 3D source and 3D TV
Supports UHDTV resolutions up to 4K2K: 3840×2160@24/25/30/50/60Hz & 4096×2160@24/25/30/60Hz
Supports passthrough of high definition audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio & Dolby Atmos
HDCP 2.2 and HDCP1.4 compliant
HDMI input supports ‘Standard’ mode and ‘TV’ mode EDID settings

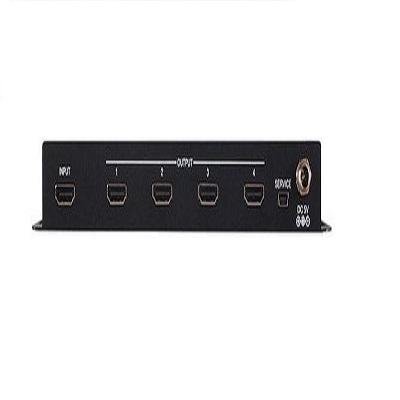

Inputs 1x HDMI [1x Uncompressed AV and Data]
1x USB Mini-B [1x SERVICE Propriety Data]
Outputs 4x HDMI [4x Uncompressed AV and Data]
PSU: 5V/2.6A
Dimensions 231mm [W] x 118mm [D] x 30mm [H]
Net Weight 616g

Manufacturer

Cypress
Dimensions

231.5x108x25mm
Max Resolution

4K 60Hz (4:4:4)
Input

1x HDMI
Output

4x HDMI
Cable Length

5M (4K)
Compliance

HDMI 2.0 UHD+ 18Gbps
Bandwidth

18Gbps
