4K UHD HDR 2×8 HDMI Switching Splitter With Group Mode

4K UHD HDR 2×8 HDMI Switching Splitter With Group Mode

SKU: CPLUS-V8PT

$788.00 Incl. GST

Let me know if the price goes down
Send
Add to Wishlist

4K UHD HDR 2×8 HDMI Switching Splitter With Group Mode 240x103x24mm

SKU: CPLUS-V8PT Categories: , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

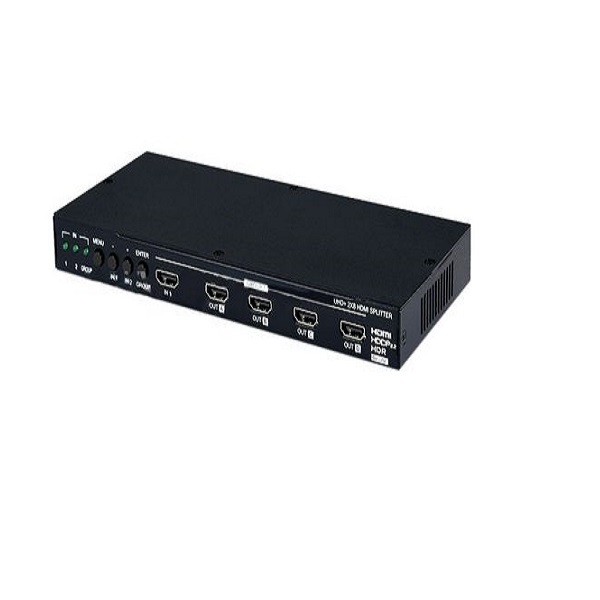

4K UHD HDR 2×8 HDMI Switching Splitter With Group Mode

18GBPS BANDWIDTH 4K60 WITH PER-OUTPUT DOWN-SCALING

CPLUS-V8PT 4K UHD switching splitter with HDCP 2.2 is an advanced solution providing high performance audio and video support including HDR and other features defined by the HDMI 2.0a specification. 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources with HDR, are able to be passed along to the 8 outputs. Pass-through of multiple digital audio formats such as LPCM 7.1, Bitstream and advanced HD Bitstream with audio sampling rates up to 192kHz are also supported. An independent HDCP management engine for each output ensures stable HDCP performance. Per-output, selectable, 4K to 1080p down-scaling/colour space conversion (4:4:4 to 4:2:0) This splitter also includes a special “Group Mode” which allows the unit to function as two independent 1×4 splitters. When Group Mode is enabled, each of the 2 HDMI inputs are routed to their own discrete set of 4 outputs. Controllable via front-panel buttons with OSD and RS-232.

  • HDMI with HDR, 3D & 4K@60Hz support, DVI 1.0 compatible
  • Individual HDCP2.2 engine increases system stability
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video signals
  • 8 output HDMI splitter with 2 selectable inputs and automatic input switching support
  • Special “Group Mode” allows the unit to function as two independent 1×4 splitters in a single box
  • Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
  • Supports pass-through of LPCM 7.1, Bitstream and advanced HD Bitstream audio formats
  • Per-output, selectable, 4K to 1080p down-scaling/colour space conversion (4:4:4 to 4:2:0)
  • Independent HDCP management engine for each output ensures stable performance
  • Supports eight internal EDIDs, eight external EDIDs copied from connected devices, and two user provided EDIDs
  • Support for the CEC “active source” command to periodically reset input selection on CEC-compatible connected displays
  • Controllable via front-panel buttons with OSD and RS-232
Manufacturer

Cypress
Size

240x103x24mm
Input

2x HDMI
Output

8x HDMI
Cable Length

5m (4K)
Max Resolution

4K 60Hz (4:4:4)
Bandwidth

18Gbps
Compliance

HDMI 2.0a UHD+ 18Gbps
