4K HDMI Over CAT5/6 Splitter Extender Kit

1 TRANSMITTER TO 4 RECEIVERS – UP TO 60M EACH

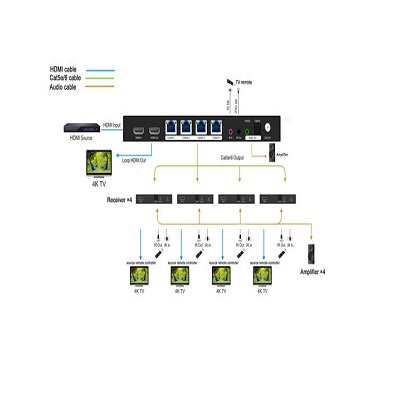

This HDMI extender and splitter kit supports bandwidth up to 18Gbps and resolution up to 4K@60Hz (8-bit). HDCP2.2/1.4 compliant. It includes a transmitter and 4 receivers. It can distribute one HDMI source to four HDMI ouputs, with one HDMI local loop out on the transmitter. The transmission distance can reach up to 60m at 4K@60Hz over a single Cat5e/6 cable. There are analogue and Toslink SPDIF digital audio outputs on both transmitter and receivers.
The extender also supports POC (Power Over Cable), bi-directional wideband IR, auto downscaling, EDID management and firmware updates. It is an ideal solution for home entertainment, conference rooms, digital signage and other applications that require high-quality HDMI signal distribution over long distances.

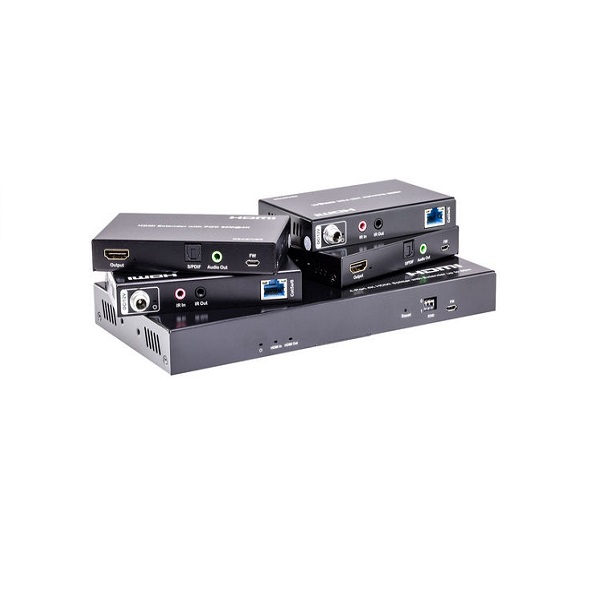

  • Includes one HDMI transmitter and 4 receivers.

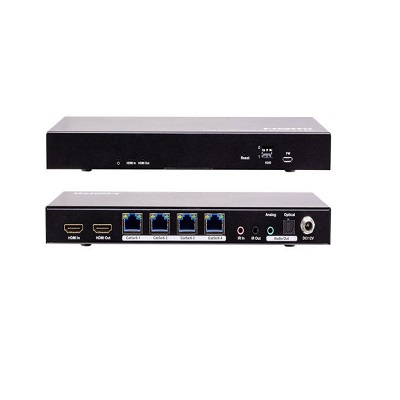

  • Distributes 1 HDMI source to 4 HDMI outputs with 1 HDMI local loop out on the transmitter.
  • Supports bandwidth up to 18Gbps, HDR10 and HLG up to 4K@60Hz 8bit.
  • Transmission distance up to 60m (197ft) at 4K@60Hz over a single Cat5e/6 cable
  • HDCP2.2/1.4 Compliant

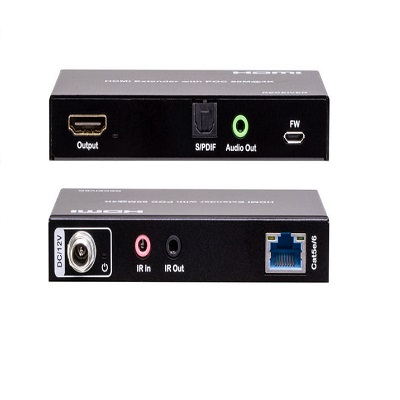

  • Analogue and Toslink SPDIF digital audio outputs on both TX and RX sides.
  • POC (Power Over Cable), one single power supply to power the transmitter and four receivers.
  • Simply connect the included power supply to the transmitter and all the receivers will receive their power via the CAT5E/6 cable.
  • Bi-Directional wideband IR support compatible with Foxtel IQ4.
  • Auto signal management, auto downscales 4K@60hz to 1080P at the receiver end.
  • If any of the TVs does not support 4K, that TV will be automatically downgraded to 1080P from the receiver. It does not affect other TVs.
  • EDID management through a 3-pin dip switch.
  • Front Micro USB port for firmware updates ensuring future compatibility.
  • One built-in reset button for factory reset via long press 3 seconds.



Note: 60M distance is under ideal transmission conditions. Acute bends, kinks, electrical interference, other cables, patch panels or wall outlets, etc. can effect maximum distance.

Manufacturer

Pro2
Range

Up to 50M
Resolution

4K60
Video Input

1x HDMI
Video Output

1x HDMI (loop out), 4x HDMI
