Many global brand name manufacturers have developed small diameter patch cords in order to solve issues with today’s commonly used patch cords, such as limited spaces for cable management, restricted airflow, and the inflexibility of the cables.

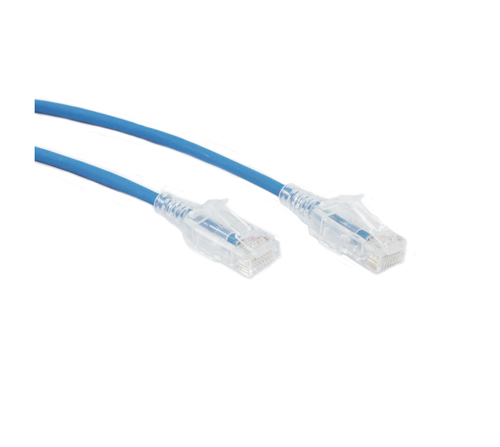

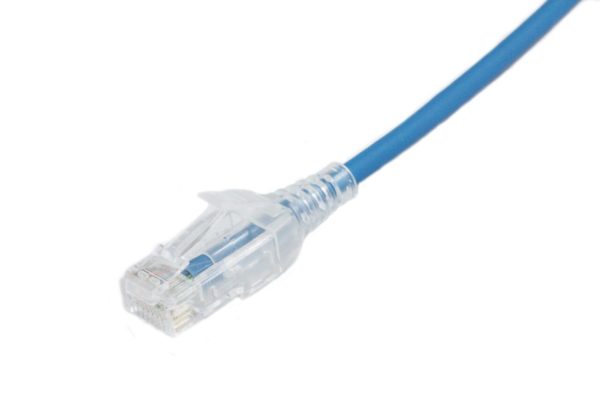

This slim 28AWG UTP Snagless cable is a perfect answer to the above problems. It is great for high density spaces such as telecommunication rooms and data centres. The cable diameter is only 3.8mm, making it almost half of the size of the standard CAT6 cable. This makes it very easy to install, and the cable management job much nicer and tidier.
Compliance
Australian Standard Approval AS/CA S008/2010
IEC 60603-7
LSZH jacket meets IEC 60754-2, IEC 61034-1 and IEC 61034-2
TIA568C.2, Max. Length 10M
Specifications
Conductor | Material | Bare Copper | ||||||
Structure | 28AWG, 7 x 0.127mm | |||||||
Insulation | Material | HDPE | ||||||
Structure | 0.63mm | |||||||
Foil Screen | Material | N/A | ||||||
Thickness | N/A | |||||||
Braid | Material | N/A | ||||||
Structure | N/A | |||||||
Rip cord | N/A | |||||||
Drain Wire | Material | N/A | ||||||
Structure | N/A | |||||||
Sheath | Material | LSZH | ||||||
Thickness | 0.51mm | |||||||
OD | 3.8 ± 0.2mm | |||||||
Pulling Tension | ||||||||
Bending Radius (without load) | Min. 8 x Cable Diameter | |||||||
Temperature Range | Installation Temperature | 0 to 50℃ | ||||||
Storage Temperature | -20 to 70℃ (Under static condictions) | |||||||
Operation Temperature | -20 to 60℃ (Under static condictions) | |||||||
Conductor Resistance @20℃ | Max. 22.3 Ohms/100m | Resistance Unbalance @20℃ | Between pairs: 5% Max. | |||||
Dielectric Strength | 2.5KV DC or 1.5KV AC for 2secs | |||||||
Mutual Capacitance | 5.6 nF/100m @1kHz | Max. Capacitance Unbalance (Pair to Ground @20℃) | 330 pF/100m @1kHz | |||||
Transfer Impedance (Max.) | N/A | |||||||
Coupling Attenuation (<1GHz) | ||||||||
Mean Characteristic Impedance | 100 Ohms ± 5 Ohms @100MHz | Nominal Velocity Propagation | 67.6% | |||||
Max. Delay Skew @20℃ | 45 nsec/100m @ 100MHz | |||||||
Transmission Characteristics | ||||||||
FREQ | RL | NEXT | PS-NEXT | Prop. Delay | ||||
MHz | (min. dB at 20℃) | (min. dB) | (min. dB) | (max. ns) | ||||
1 | 20.0 | 74.3 | 72.3 | 570 | ||||
4 | 23.0 | 65.3 | 63.3 | 552 | ||||
8 | 24.5 | 60.8 | 58.8 | 549 | ||||
10 | 25.0 | 59.3 | 57.3 | 545 | ||||
16 | 25.0 | 56.2 | 54.2 | 543 | ||||
20 | 25.0 | 54.8 | 52.8 | 542 | ||||
25 | 24.2 | 53.3 | 51.3 | 541 | ||||
31.25 | 23.3 | 51.9 | 49.9 | 540 | ||||
62.5 | 20.7 | 47.4 | 45.4 | 539 | ||||
100 | 19.0 | 44.3 | 42.3 | 538 | ||||
200 | 16.4 | 39.8 | 37.8 | 537 | ||||
250 | 15.6 | 38.3 | 36.3 | 536 |
