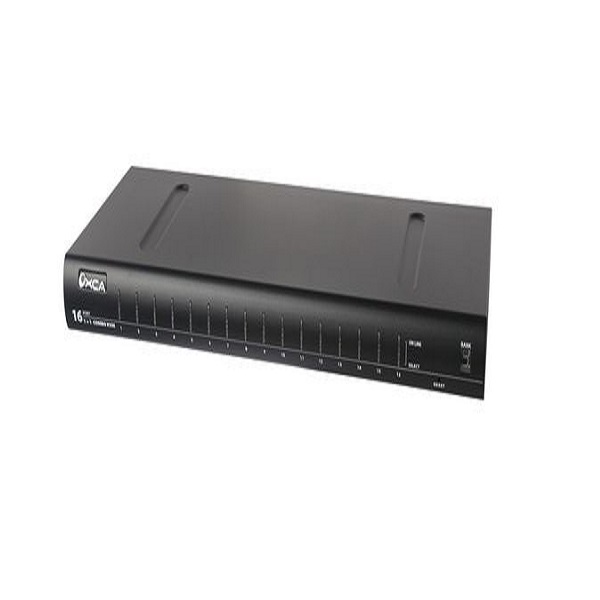

16 Port Rackmount VGA 2x USB KVM Switch
CONTROL MULTIPLE PCs ON ONE KEYBOARD/MOUSE/MONITOR
This 16 port KVM switch can control multiple PCs from one set of keyboard, VGA monitor and mouse. A single unit can control up to 16 computers. Supports DOS, Windows, Unix, Linux and MacOS operating system. Supports superior video quality at up to 1920x1440px resolution, DDC2B. Hot pluggable. No software required. Easy PC selection via the front push buttons, hot keys or OSD (on screen display). Auto Scan Mode for monitoring PCs. This KVM switch has a durable metal case and is rack mountable to standard 19″ rack cabinet (Mounting brackets included).
- 19” rack mount design.
- USB and/or PS2 plus VGA (Requires Leads)
- Superior video quality – Up To 1920x1440px resolution, DDC2B
- Hot plug support add or remove PCs without powering off the KVM switch or PCs.
- No software required.
- Built-in one extra daisy chain port.
Model: KSC-116E
Computer Connections: 16
Maximum Computer Connections: 2048

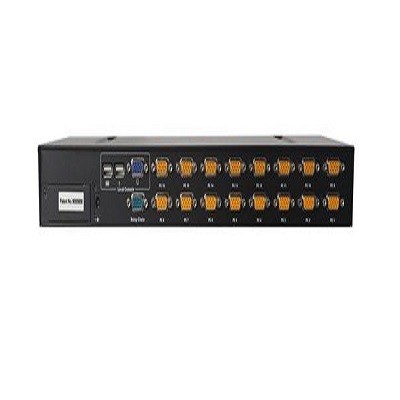

Computer Connectors: HDB 15 Female
Console Ports: 1 (One Local), plus1 Optional Modules: Selectable CAT5-Based or IP-Based Remote Console

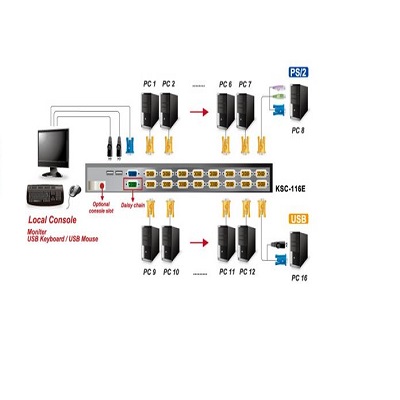

Daisy Chaining: Daisy Chainable up to 8 levels, Connector: DB15 (Female Type)
Computer selection: On Screen Display (OSD), Hot Key, Push Button
Hotkey: Provide various Hotkey (Scroll-Lock/ Cap-Lock/ Num-Lock/ Alt/ Ctrl/ Win)
7-seg LED for Bank and Port display: 1
Auto-Scan Intervals: 5 ~ 99 Sec.
Keyboard / mouse Emulation: PS/2
Video Resolution (Local Console): 1920 x 1440
Video Resolution (Remote Console): 1600 x 1200 for CAT5-Based 500 feet remote console, 1024 x 768 for CAT5-Based 1000 feet remote console, 1600 x 1200 for IP-Based remote console.
Power Adapter: DC 12V, 1A
Housing: Metal
Size: 19″ Rack mount, 1U
Dimension(LX W X H): 448×190×44(mm)
