12 Channel Multi-Zone Amplifier Class-D

12 Channel Multi-Zone Amplifier Class-D

SKU: MA1260

$1,446.00 Incl. GST

Let me know if the price goes down
Send
Add to Wishlist

12 Channel Multi-Zone Amplifier Class-D 424x102x362mm 240Vac

SKU: MA1260 Categories: , , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

12 Channel Multi-Zone Amplifier Class-D

MULTI-ZONE 12 CHANNELS 65Wrms OR HIGH POWER BRIDGED 6 CHANNELS 130Wrms



The Dayton Audio MA1260 is a freestanding, twelve channel amplifier designed for custom multi-room sound distribution. Its intelligently engineered and versatile design integrates easily into high-end whole house audio systems.

Efficient Class D design delivers superior audiophile sound quality and performance in a cool and efficient package. The MA1260 can be stacked with other audio components and includes removable ears for mounting in standard audio racks (2RU).

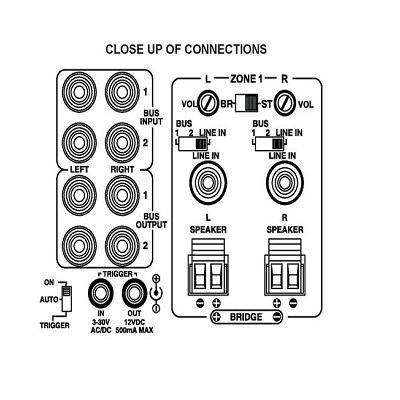

Two common or BUS inputs feed audio signals from standard line-level audio sources to any or all channels. Each of the twelve channels has its own dedicated input and independent level adjustment to provide further flexibility. By simply flipping a single switch, two channels can be bridged to increase the total power output for that zone. This is helpful when extra power is needed in certain areas. Manual, automatic on/off, or triggered 12V input turn-on modes facilitate easy integration into automated systems. For quick and easy troubleshooting of the system, each pair of channels or zones has a bi-colour LED to indicate its operational status.

Dayton Audio’s MA1260 12-channel Class D amplifier packs versatility and efficiency into a compact package that is suited ideally for zoned sound distribution.

  • 12 channels (6 stereo zones) in one convenient enclosure
  • Efficient Class D design delivers superior audiophile sound quality and performance
  • Independent and/or bus inputs enable unparalleled flexibility
  • Bridgeable channel outputs provide additional power when needed
  • Independent channel gain controls allow the output of each speaker to be perfectly matched
  • Converts easily from rack-mount to tabletop configurations
  • Installer-friendly setup and connections

Rated power output per channel:
60 watts RMS into 8 ohms,
100 watts into 4 ohms (1% THD)
Bridged output: 170 watts into 8 ohms (1% THD)
Circuit topology: Class D
Signal to noise ratio: 100 dB A-weighted
Efficiency: 93%
Frequency response: 7.5 Hz to 48 kHz
Dimensions: 16.7″ W x 4″ H x 14.25″ D

Manufacturer

Dayton Audio
Size

424x102x362mm
Voltage

240Vac

Reviews

There are no reviews yet.

Be the first to review “12 Channel Multi-Zone Amplifier Class-D”
12 Channel Multi-Zone Amplifier Class-D_Brochure
