1.6 mm BNC Cable Connector Black

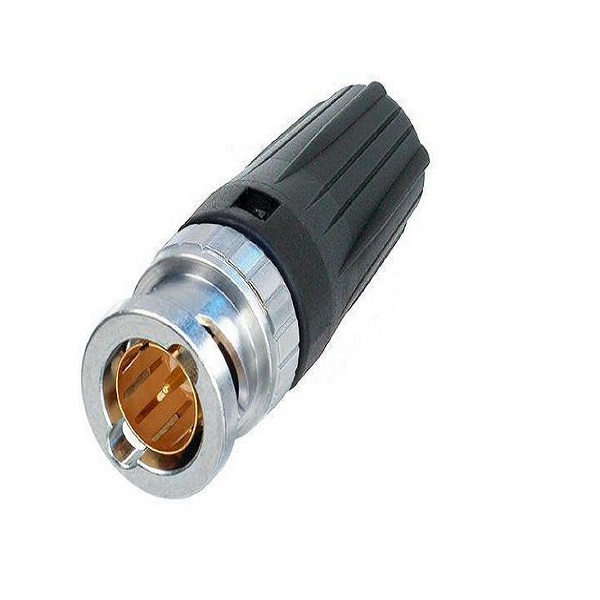

The Neutrik NBNC75BYY11 rearTWIST BNC Cable Connector offers a true 75 Ω design and is suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications and offers colour coding. Crimp size: Pin: 1.6 mm (square), Shield: 8.23 mm (hex)
- “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
- Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 Ω design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
Connection Type BNC 75 Ω
Gender Male
Contact Resistance ≤3 m Ω inner (inner)
Comment ≤2
Dielectric Strength 1.5 kVDC (peak)
Insulation Resistance >5 G Ω
Impedance 75 Ω
Rated Voltage 500 V
VSWR ≤1.050 / >32 dB up to 1 GHz ≤1.065 / >30 dB up to 2 GHz ≤1.100 / >26 d
Cable O.D. 0.31″ (8 mm)
Cable Retention >30 N (center)
Crimp Mass 8.23 Hex crimp (shield) acc. IEC 60803 (die designation G)
Crimp Size 1.6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion Force <25 N
Lifetime >1,000 mating cycles
Locking Device Bayonett
Cable Anchoring: Jacket crimping
Contacts Brass (CuZn35Pb2), 0.2 µm AuCo (Center contact)
Insert PTFE
Shell Brass (CuZn39Pb3)
Shell Plating Optalloy
