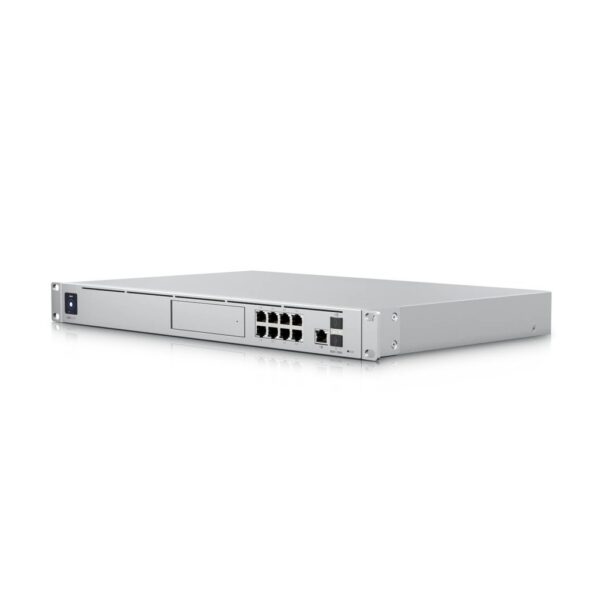

Ubiquiti Dream Machine Special Edition Enterprise-grade UniFi OS Console 8x GbE PoE RJ45 Ports, 3.5″ HDD Bay

Ubiquiti Dream Machine Special Edition Enterprise-grade UniFi OS Console 8x GbE PoE RJ45 Ports, 3.5″ HDD Bay

SKU: NHU-UDM-SE

$1,172.00 Incl. GST

Let me know if the price goes down
Send
Add to Wishlist
SKU: NHU-UDM-SE Category: Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

Ubiquiti Dream Machine Special Edition Enterprise-grade UniFi OS Console 8x GbE PoE RJ45 Ports, 3.5″ HDD Bay

Features:
  • 1.7 GHz quad-core processor
  • Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
  • (8) GbE RJ45 ports, including (6) 802.3af PoE and (2) 802.3at PoE+ LAN ports
  • (1) 10G SFP+ LAN port
  • (1) 1.3″ LCM colour touchscreen for at-a-glance network monitoring
  • Customizable internet threat filtration and traffic identification for enhanced network security
  • Quick, Bluetooth-powered setup via the UniFi Network web application or mobile app 1U-sized, rack-mountable device
  • Connect a SmartPower Redundant Power System to create an uninterruptible network
  • Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5″ HDDs
  • 128 GB integrated storage for full UniFi OS Application experience

Enterprise Grade for Home & Business

The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It’s also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFi Network application (web or mobile).

Mechanical
Dimensions

442.4 x 43.7 x 285.6 mm

Weight

4.95 kg

Enclosure materials

Aluminium CNC, SGCC steel

Mount material

SGCC steel rack mount

Hardware
Processor

Quad-Core ARM® Cortex®-A57 at 1.7 GHz

System memory

4 GB DDR4

On-board storage

16 GB eMMC
Integrated 128 GB SSD

IDS/IPS throughput

3.5 Gbps*

*Measured with iPerf3

Max. power consumption (excluding PoE output)

50W

Power method

(1) Universal AC input, 100-240VAC, 4.4A Max, 50/60 Hz
(1) USP-RPS DC input, 52VDC, 3.94A

Power supply

AC/DC, Internal, 240W

Supported voltage range

100 to 240VAC

Management interfaces

Ethernet
Bluetooth

Networking interfaces

(1) WAN: 2.5 GbE RJ45 port
(8) LAN: 1 GbE RJ45 ports

SFP+ interfaces

(1) WAN: 10G SFP+
(1) LAN: 10G SFP+

PoE interfaces

(2) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)
(6) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)

Max. PoE wattage per port by PSE 802.3af

15.4W

Max. PoE wattage per port by PSE 802.3at

30W

Voltage range 802.3af mode

44 to 57V

Voltage range 802.3at mode

50 to 57V

ESD/EMP protection

Air: ± 15 kV, contact: ± 8 kV

LCM display

(1) 1.3″ touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: firmware upgrading

Button

Factory reset

Operating temperature

-10 to 40° C

Operating humidity

5 – 95% noncondensing

Certifications

CE, FCC, IC

LEDs
Ethernet

White: Link / Activity

SFP+

White: Link / Activity

HDD

White: Disk Activity
Amber: Disk Error

RPS

Blue: Ready

Important Warranty Information:
•2-Year Warranty: Current promotion running from March to December 2024, all Ubiquiti items purchased during this period come with 2 years warranty.
•For items purchased outside the specified period (March to December 2024), the standard Manufacturer’s warranty duration is 1 year.

Features:
•Includes full UniFi application suite for device management
•3.5+ Gbps routing
•Integrated 8-port PoE/PoE+ switch
•(1) 10G SFP+, (8) GbE RJ45 LAN ports including (2) PoE+, and (6) PoE
•(1) 10G SFP+, (1) 2.5 GbE RJ45 WAN ports
•1.3″ touchscreen
•128 GB SSD & 3.5″ HDD bay
