Push-Pull Tube Power Transformers

Push-Pull Tube Power Transformers

SKU: 1620A

$376.00 Incl. GST

Out of Stock, Call for Availability

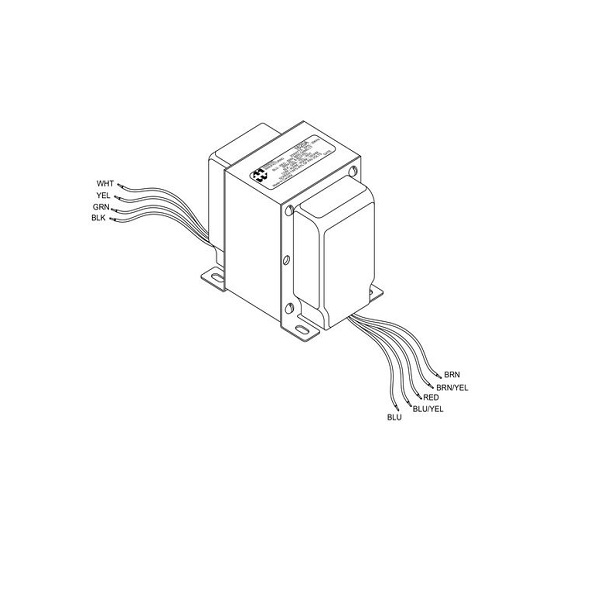

Push-Pull Tube Power Transformers 64x89x78mm

Add to Wishlist
SKU: 1620A Category: Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

Push-Pull Tube Power Transformers

HI-FI AUDIO OUTPUT MULTIPLE SECONDARY TRANSFORMER

Designed for push-pull tube output circuits.
Units are designed to provide ample “headroom” at bass frequencies (Note the weight of each transformer).
All models have a secondary tapped for 4, 8 or 16 ohm outputs.
Enclosed (shielded), 4 slot, above chassis Type “X” mounting.
Manufactured with plastic coil forms for coil support and insulation.
Frequency response 30Hz. to 30Khz. at full rated power (+/- 1db max. – ref. 1Khz) minimum.
Insulated flexible leads 8″ min.
Included 40% screen taps for Ultra-Linear operation (if desired).
Typical applications – Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.

Dimensions

64x89x78mm
Power Output

20W
Impedance

4Ω / 8Ω / 16Ω
Suits

6AQ5, 6L6, 6V6
