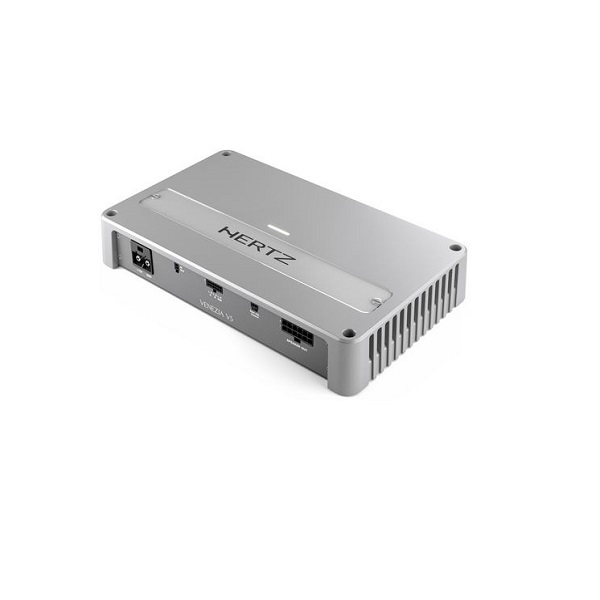

Marine 1700w 5 Channel Amplifier Venezia V5

The Venezia V5 is the most powerful five-channel Hertz marine amplifier ever, featuring 130 Wx 4 (4Ω) plus 470W (4Ω) for the subwoofer. Hertz Advanced Class-D technology maximises efficiency and power while minimising heat and electromagnetic radiation, enhancing sound quality that reaches new heights with Hi-Res certification. High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5 is engineered and tested for marine applications (UV, salt fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced, fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V5 is fully protected by short-circuit, overload, and thermal protections with auto-resetting.

• Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature and thermal shock) featuring IPX2 certification.
• ADC (Advanced D-Class) Technology 2 Ohm stable output stage providing high performance with superior efficiency.
• Die-cast aluminium compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
• Balanced fully-differential input circuitry to reject electromagnetic disturbances.
• Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
• Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
• Short-circuit, overload and thermal protections with auto-resetting.
• Plug and Play Input and Output connections with safe-lock.
• Proprietary Plug and Play Power Supply Connector with safe-lock.

Channels: 5-3
Power Supply Voltage: 9-16V DC
Idling Current (Power On/Off): 1.8A / 0.04mA
Consumption @ 1-Ohm, 14.4V DC (Max Musical Power): 70A
Remote In: 7-15V DC 1mA
THD (100Hz @ 4-Ohm): Less Than 0.05%
Bandwidth: 10-42kHz
S/N Ratio (A Weighted @ 1V): 102dB
Damping Factor (100Hz @ 4- Ohm): 130
Pre-ln Sensitivity: 0.2-5V RMS
Pre-ln Impedance: 10k-Ohm
Load Impedance (MIN):
At 5Ch: 2-Ohm
At 3Ch: 4-Ohm + 4-Ohm + 2-Ohm

Adjustable Crossovers: Yes
Output Power (RMS) @ 14.4V DC, THD 1%:
5Ch: 130W x 4 (4-Ohm) + 490 x 1 (4-Ohm)
5Ch: 220W x 4 (2-Ohm) + 820W x 1 (2-Ohm)
3Ch: 440W x 2 (4-Ohm) + 490W x 1 (4-Ohm)
3Ch: 440W x 2 (4-Ohm) + 820W x 1 (2-Ohm)

Total Power RMS: 1700W
