M20 NC16 Fitting CLT/CETX 90 Degree Straight Fixed External Thread NPB

M20 NC16 Fitting CLT/CETX 90 Degree Straight Fixed External Thread NPB

SKU: LTCM-B20

$23.00 Incl. GST

Let me know if the price goes down
Send
Add to Wishlist

FITTING CLT/CETX 90DEG STRAIGHT FIXED EXTERNAL THREAD NPB M20 NC16

SKU: LTCM-B20 Categories: , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

M20 NC16 Fitting CLT/CETX 90 Degree Straight Fixed External Thread NPB

The CABFLX range of liquid tight conduit fittings provide quick and reliable wiring protection for a range of industrial and commercial applications. Our male thread fittings feature an external thread for threaded entries and knockouts, and are designed to securely attach conduit to enclosures, machinery or bulkheads.

Our 90-degree brass conduit fittings feature high-quality nickel plating for superior durability. With superior chemical resistance and a dust proof, liquid tight seal, LTCM fittings are suitable for installations that require mechanical and environmental protection. Possible applications include: machining centres and robotics, general wiring for OEM applications, low fire hazard applications, underfloor wiring in office buildings or any narrow space in static applications.

All liquid tight fittings are supplied complete with sealing ring and a flanged grounding cone for excellent pull-out strength. One-piece installation makes these fittings easy to use; the fitting simply swivels on the conduit until tightened. Does not come with lock nut.

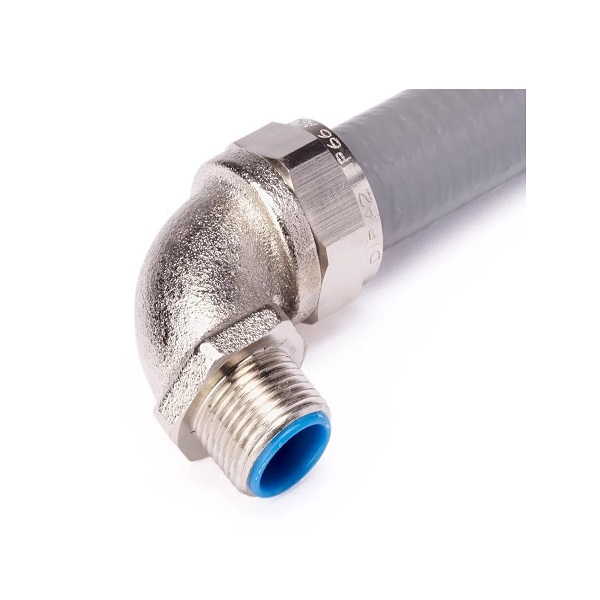

  • Nickel plated brass liquid tight 90 degree fitting, presents a male thread
  • Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
  • Ex ta IIIC IP66 Hazardous Area Type Protection
  • IEC Ex TSA 11.0026 Hazard Area Certification Number
  • High performing chemical resistance and mechanical strength

Technical Data

Material
Connector body: Nickel plated brass
Hexagonal nut: Nickel plated brass
Sealing ring: Nylon 66
Ferrule: Galvanised steel

Dimensions
Thread size: M20 x 1.5
Conduit size: 16mm
A: 56mm
B (A/C): 32mm
C (A/C): 28mm
D: 36mm

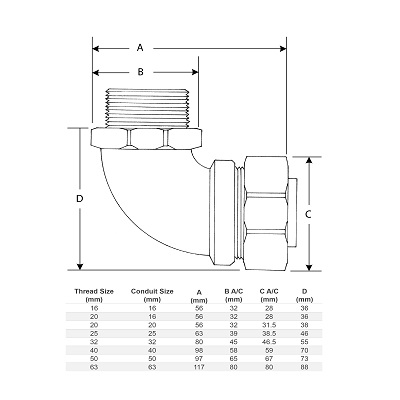

Refer to line drawing for reference (see additional information)

Thread size

M20 x 1.5
Conduit size

16mm
Conduit Ducting Fitting Type

Brass 90 Degree
