Liquid Tight 90 DEG S/Steel Fitt 16/20mm

Liquid Tight 90 DEG S/Steel Fitt 16/20mm

SKU: LTCM-S20

$32.00 Incl. GST

In stock

Let me know if the price goes down
Send
Add to Wishlist
SKU: LTCM-S20 Category: Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

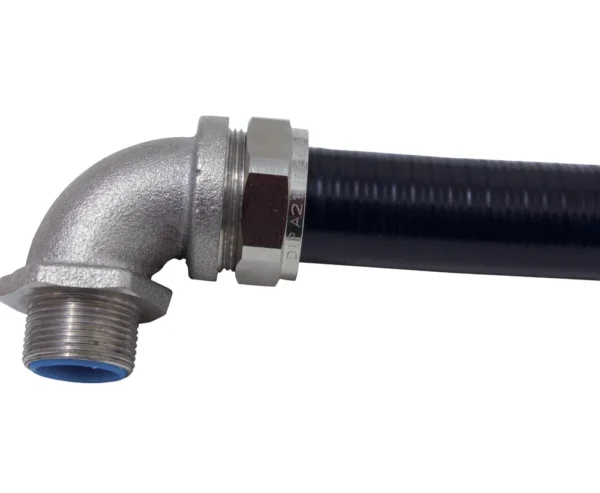

Liquid Tight 90 DEG S/Steel Fitt 16/20mm

  • 304 grade stainless steel liquid tight 90 degree fitting, presents a male thread
  • Tested and Certified to IEC60079-0: 2007-10 and IEC60079-31: 2008
  • High performing corrosion and chemical resistance, high mechanical strength
  • Ex ta IIIC IP66 Hazardous Area Type Protection
  • IEC Ex TSA 11.0026 Hazard Area Certification Number

The CABFLX range of liquid tight conduit fittings provide quick and reliable wiring protection for a range of industrial and commercial applications. Our male thread fittings feature an external thread for threaded entries and knockouts, and are designed to securely attach conduit to enclosures, machinery or bulkheads.

Our 90-degree stainless steel conduit fittings feature superior corrosion and chemical resistance. With a dust proof, liquid tight seal, LTCM fittings are suitable for installations that require mechanical and environmental protection. Possible applications include: machining centres and robotics, general wiring for OEM applications, low fire hazard applications, underfloor wiring in office buildings or any narrow space in static applications.

All liquid tight fittings are supplied complete with sealing ring and a flanged grounding cone for excellent pull-out strength. One-piece installation makes these fittings easy to use; the fitting simply swivels on the conduit until tightened.

Technical Data

Material
Connector body: 304 Stainless Steel
Hexagonal nut: 304 Stainless Steel
Sealing ring: Nylon 66
Ferrule: Galvanised steel

Dimensions
Thread size: 20mm
Conduit size: 16mm
A: 56mm
B (A/C): 32mm
C (A/C): 28mm
D: 36mm
Refer to line drawing for reference (see additional information)
