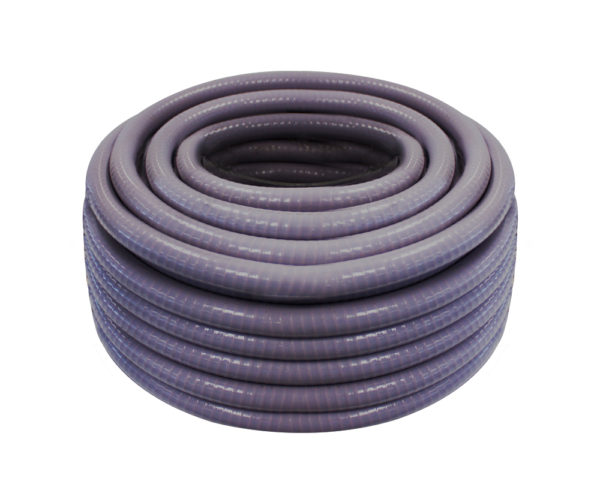

CNM25GR-30, LIQUID TIGHT NON METAL GREY 25MM X 30M

CNM25GR-30, LIQUID TIGHT NON METAL GREY 25MM X 30M-0

CNM25GR-30, LIQUID TIGHT NON METAL GREY 25MM X 30M

SKU: CNM25GR-30

$115.00 Incl. GST

In stock

Let me know if the price goes down
Send
Add to Wishlist

Flexible spiral wound PVC conduit made from a Very Hard PVC Spiral encased in a PVC
extrusion giving us a High Strength Smooth Bore Conduit
UV stabilized Grey PVC jacket Operating Temp of -20 to +80 deg Superior Chemical
Resistance
Suitable for Food Prep environments, Minning Applications, Water Treatment
Machine Wiring and other Industrial Areas PVC fittings available but can
Also be used with CABFLX Steel Brass and Stainless Steel Fittings

SKU: CNM25GR-30 Category: Tags: , Shipping & Returns Information

Sometimes exact stock levels are not reflected on the website and for this reason, deliveries could be delayed. If a product is in stock, we aim to dispatch and deliver between 1-4 working days, subject to customer location. In the unlikely event of product being out of stock, customer is contacted via mail/phone at the earliest. On a few occasions, distributors also run out of stock causing further delays. If this be the case, we try our best to keep customer informed of order progress.

1300 178 620

CNM25GR-30, LIQUID TIGHT NON METAL GREY 25MM X 30M

  • Flexible spiral wound PVC conduit made from a Very Hard PVC Spiral encased in a PVC extrusion giving us a High Strength Smooth Bore Conduit
  • UV stabilised Grey PVC jacket Operating Temp of -20 to +80 deg Superior Chemical Resistance
  • Suitable for Food Prep environments, Minning Applications, Water Treatment
  • Machine Wiring and other Industrial Areas PVC fittings available but can
  • Also be used with CABFLX Steel Brass and Stainless Steel Fittings

CABFLX non-metallic liquid tight conduit is comprised of a very hard PVC spiral encased in a PVC outer jacket, producing a high strength, smooth bore conduit suitable for a diverse range of applications.

Our type CNM non-metallic conduit features a variety of performance characteristics that make it an excellent choice for use in food preparation environments, mining applications, machine wiring, air conditioning hook-ups and many other outdoor applications. These characteristics include flexibility, durability, chemical resistance and UV protection. In addition to providing excellent abrasion protection, our liquid tight PVC conduit is resistant to sunlight, mild acids, alkalis and oils.

While we stock PVC terminator fittings specifically designed for the CNM range, this conduit can also be used with CABFLX steel, brass or stainless-steel liquid tight fittings.

Technical Data

Material: PVC
Colour: Grey
Working Temperature: -20 to +80 degrees Celsius
Nominal Size: 25mm
ID: 21mm
OD: 26.4mm
Min Inside Bend: 108mm
Carton Reel Length: 30m
